SELECT A DIAGRAM

01 - Cover


03 - Upper Cabinet/drum Heater


05 - Motor/blower/belt

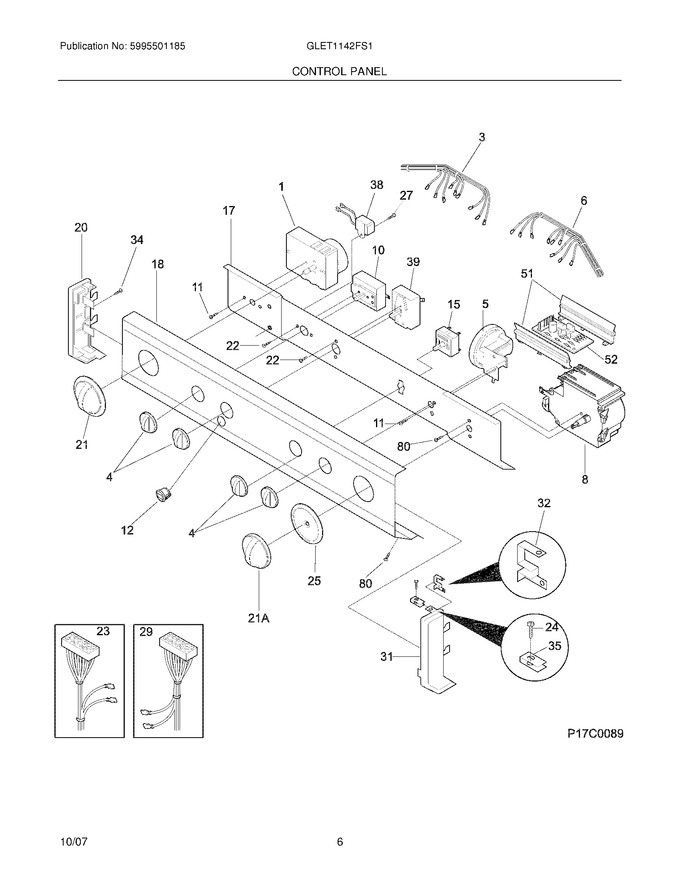

07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	134844470		Knob,rotary ,white   (Replaces: 134034970)			Immediately	$ 66.92
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	134263400		Bracket,control Mount		Appelez-nous	-
18	134284500		Panel,trimplate ,console Front		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	134043000		Knob,dryer Timer ,white/dark Gray			Immediately	$ 59.54
22	3161259		Screw,switch Mtg ,6-32 X 0 .19 ,(2) ,sems				$ 6.83
24	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
25	131976804		Indicator,timer Pointer ,white/dark Gray,washer				$ 36.33
27	131892100		Screw,6-20b X 0.230		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
51	131587400		Bracket,pc Board Mtg. ,(2)				$ 44.40
80	131168200		Screw,10-16ab X 0.375   (Replaces: 134547800)			Immediately	$ 14.18
21A	134043200		Knob,washer Timer ,white			Immediately	$ 49.62
F1	131960800		Timer,dryer ,4 Off				$ 241.46
F10	134399700		Switch,start ,lcd			Immediately	$ 83.77
F12	134040800		Switch,on/off ,white ,round				$ 65.92
F15	134192400		Switch,water Temp ,4 Posn Rotary				$ 52.87
F23	134605500		Wiring Harness,main				$ 144.64
F29	134895800		Wiring Harness,washer ,lower				$ 177.70
F3	134136700		Wiring Harness,dryer Control				$ 225.44
F38	5303286537		Buzzer				$ 93.61
F39	134399900		Switch,dryer Temp ,lcd				$ 45.52
F5	134996900		Switch,pressure ,infinite   (Replaces: 134487800)				$ 109.15
F52	134216300		Control Board,moisture Sensor				$ 67.62
F6	134542600		Wiring Harness,washer Control ,w/temp Switch				$ 85.05
F8	134237200		Timer,washer ,5 Off				$ 281.22
NI	5304426200		Screw,terminal Block		Appelez-nous	-
NI	134101400		Terminal Block,main			Immediately	$ 55.99

    View Diagram in Separate Window       Print Part List
