01 - Base
02 - Cabinet (prior Ser Pre 18)
03 - Cabinet (ser Pre 18 & After)
04 - Control Panel
05 - Top
06 - Transmission
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

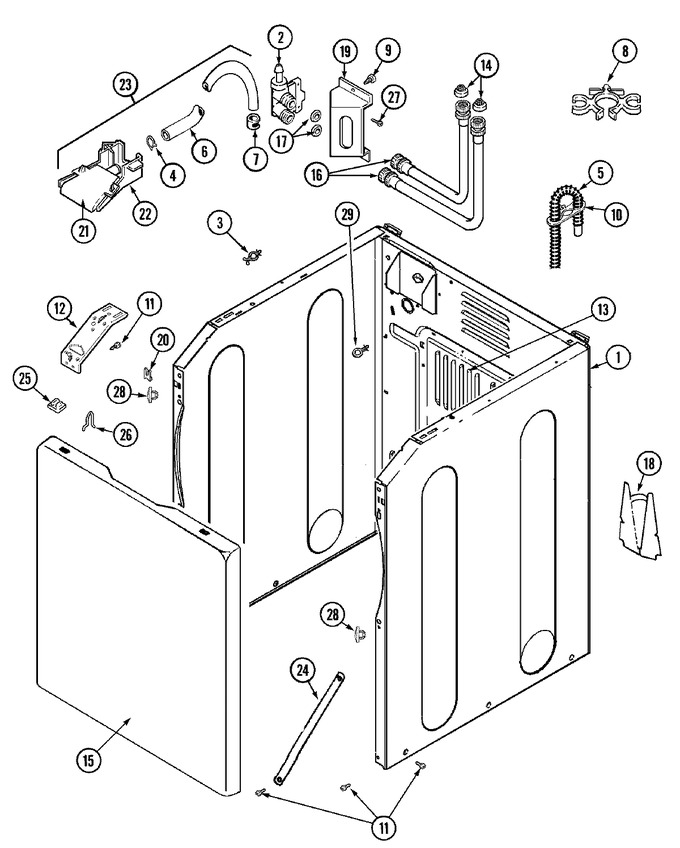

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22002548 | Cabinet Assy. (wht) | 10 |
|
- | ||||
| 2 | 22002707 | Valve, Water | 10 |
|
$ 89.29 | ||||
| 3 | 22002852 | Retainer, Wire | 10 |
|
- | ||||
| 4 | WP285655 | Clamp, Spring (Replaces: 22002838) | 10 |
|
Immediately | $ 7.55 | |||
| 5 | 76660 | Anti-siphon Accessory (Replaces: 12001586) | 10 |
|
Immediately | $ 119.93 | |||
| 5 | WP285655 | Clamp, Hose (Replaces: 22003596) | 10 |
|
Immediately | $ 7.55 | |||
| 5 | WP22003410 | Hose, Drain (Replaces: 22003410) | 10 |
|
Immediately | $ 47.69 | |||
| 6 | 22002761 | Hose, Injector | 10 |
|
- | ||||
| 7 | WP596669 | Clamp,hose-injec.hose To Valve (Replaces: 216169) | 10 |
|
Immediately | $ 7.56 | |||
| 8 | WP22002765 | Clip, Hose (Replaces: 22002765) | 10 |
|
$ 10.58 | ||||
| 9 | 33002190 | Screw (no.10-3/8``) | 10 |
|
- | ||||
| 10 | 22002701 | Retainer, Drain Hose | 10 |
|
- | ||||
| 11 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 22002839 | Brace, Cabinet (rt) | 10 |
|
- | ||||
| 12 | 22002840 | Brace, Cabinet (lt) | 10 |
|
- | ||||
| 13 | 22002092 | Panel, Access | 10 |
|
- | ||||
| 14 | 200961 | Screen Washer, Inlet Hose | 10 |
|
- | ||||
| 15 | 22002737 | Panel, Front (wht) | 10 |
|
- | ||||
| 16 | 35-3401 | Hose, Inlet (hot) | 10 |
|
- | ||||
| 16 | WP89503 | Hose, 4` Inlet (Replaces: 33-7891) | 10 |
|
Immediately | $ 21.68 | |||
| 17 | Y013783 | Gasket, Inlet Hose | 10 |
|
$ 18.72 | ||||
| 18 | 22002704 | Cover, Drain Hose | 10 |
|
- | ||||
| 19 | 22002762 | Bracket, Water Valve | 10 |
|
- | ||||
| 20 | 22002748 | Front Panel Bracket | 10 |
|
- | ||||
| 21 | 22002759 | Flume, Water Injector (upr) | 10 |
|
- | ||||
| 22 | 22002760 | Flume, Water Injector (lwr) | 10 |
|
- | ||||
| 23 | 22002722 | Injector Flume Assy. | 10 |
|
- | ||||
| 24 | 22002767 | Brace, Cross | 10 |
|
- | ||||
| 25 | 22002013 | Stop, Shipping | 10 |
|
$ 5.43 | ||||
| 26 | WP25-7220 | Clip, Cabinet Top (Replaces: 25-7220) | 10 |
|
$ 10.77 | ||||
| 27 | WP9740848 | Screw----na (Replaces: 22002362) | 10 |
|
Immediately | $ 7.07 | |||
| 28 | 22002965 | Hole Plug | 10 |
|
- | ||||
| 29 | 22003086 | Clip, Air Dome Hose | 10 |
|
- | ||||
| 30 | 33002388 | Washer (hdwr Pkg) | 10 |
|
- | ||||
| 30 | Y013783 | Gasket, Inlet Hose | 10 |
|
$ 18.72 | ||||
| 30 | WPW10339879 | Tie, Beaded (Replaces: 22002702) | 10 |
|
$ 7.11 | ||||
| 30 | 22002229 | Strainer | 10 |
|
- | ||||
| 30 | W10850756 | Screw----na (Replaces: 33001245) | 10 |
|
$ 6.98 | ||||
| 30 | 35-2890 | Cable Tie | 10 |
|
- |
