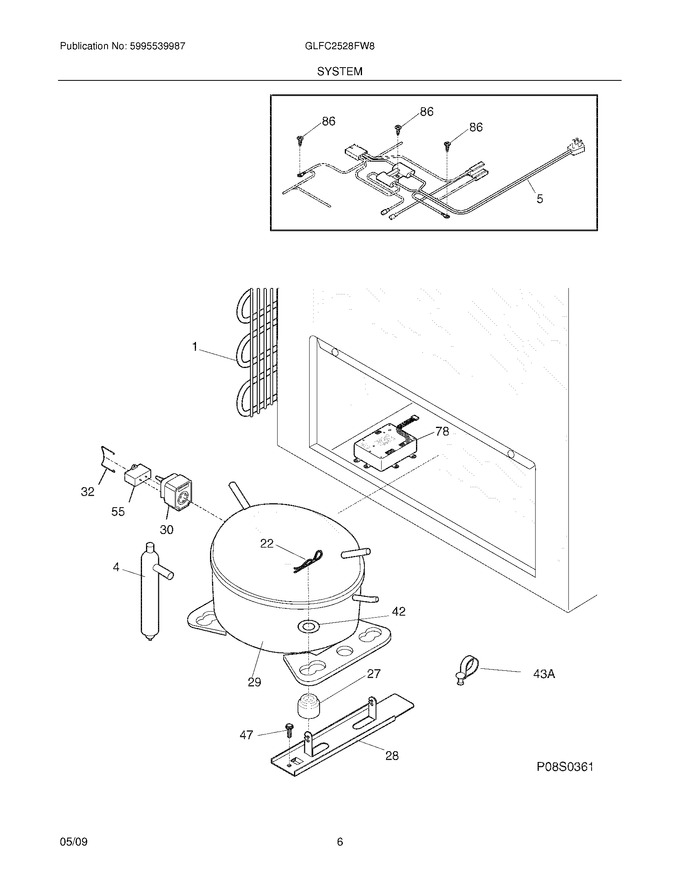

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	216987500		Drier-filter		Appelez-nous	-
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5304464023		Support,compressor		Appelez-nous	-
30	216954203		Controller				$ 46.45
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
42	216232701		Washer,flat				$ 2.10
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
78	216893100		Assy-high Voltage				$ 306.66
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
43A	5303212614		Clip,harness Mount				$ 2.88
F1	5300300173		Condenser		Appelez-nous	-
F29	5304475102		Compressor,w/o Electricals   (Replaces: 216967000)			Immediately	$ 660.56
F5	297016000		Harness-main				$ 124.85
FNI	297015700		Harness,low Voltage- ,w/thermistor				$ 67.71
NI	297102800		Spacer-tube		Appelez-nous	-
