SELECT A DIAGRAM

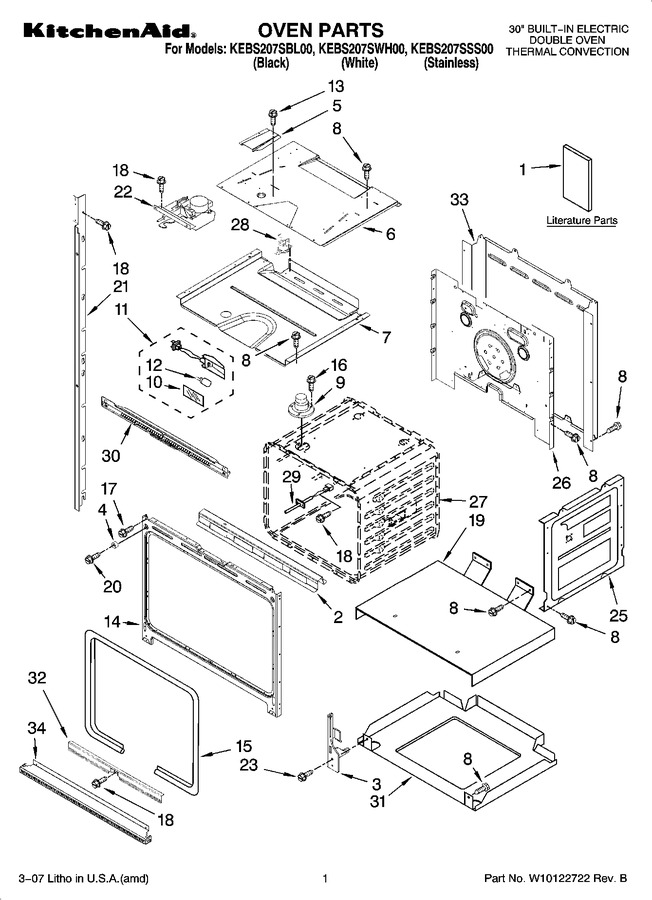

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3191638		Safer Cooking Tips (english)		Appelez-nous	-
1	9759133		Safer Cooking Tips (french)		Appelez-nous	-
1	8304336		Installation Instructions		Appelez-nous	-
1	8304324		Use & Care Guide		Appelez-nous	-
1	8303952		Tech Sheet (english)		Appelez-nous	-
1	8304416		Tech Sheet (french)		Appelez-nous	-
1	8304335		Easy Set Guide		Appelez-nous	-
2	8304420		Bracket, Base		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
4	W10105790		Bumper, Door (2)   (Replaces: 9760749)				$ 6.35
5	8303829		Exhaust,vent Slope				$ 7.99
6	8303513		Divider, Vent		Appelez-nous	-
7	8303511		Top Chassis		Appelez-nous	-
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light, Assembly   (Replaces: 4448972)				$ 98.46
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 60.59
13	WP3400832		Screw (2)   (Replaces: 3400832)			Immediately	$ 6.98
14	W10116849		Frame, Front		Appelez-nous	-
15	WP8304493		Gasket, Door   (Replaces: 8304493)				$ 160.62
16	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
19	4451478		Support, Insulation				$ 54.10
20	WP4450038		Screw (2)   (Replaces: 4450038)				$ 6.84
21	8303678BL		Mounting Rail, Side Left (black)		Appelez-nous	-
21	8303677WH		Mounting Rail, Side Right (white)		Appelez-nous	-
21	8303677BL		Mounting Rail, Side Right (black)		Appelez-nous	-
21	8303678WH		Mounting Rail, Side Left (white)		Appelez-nous	-
22	W11029221		Latch, Mortorized   (Replaces: 8303692)			Immediately	$ 280.85
23	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 129.16
26	8304303		Back, Chassis		Appelez-nous	-
28	WP8304452		Thermal Fuse 105c   (Replaces: 8304452)			Immediately	$ 104.76
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
30	8303685		Vent, Center				$ 61.46
31	8303516		Base, Chassis		Appelez-nous	-
32	8304478		Retainer, Gasket		Appelez-nous	-
33	8303517		Cover, Back				$ 73.96
34	8303967		Insulation, Back				$ 55.31
34	8303705WH		Trim, Bottom Vent (white)				$ 66.38
34	8303705BL		Trim, Bottom Vent (black)				$ 67.31
34	8303705SS		Trim, Bottom Vent (stainless)		Appelez-nous	-
34	8303965		Insulation, Wrap				$ 54.21
