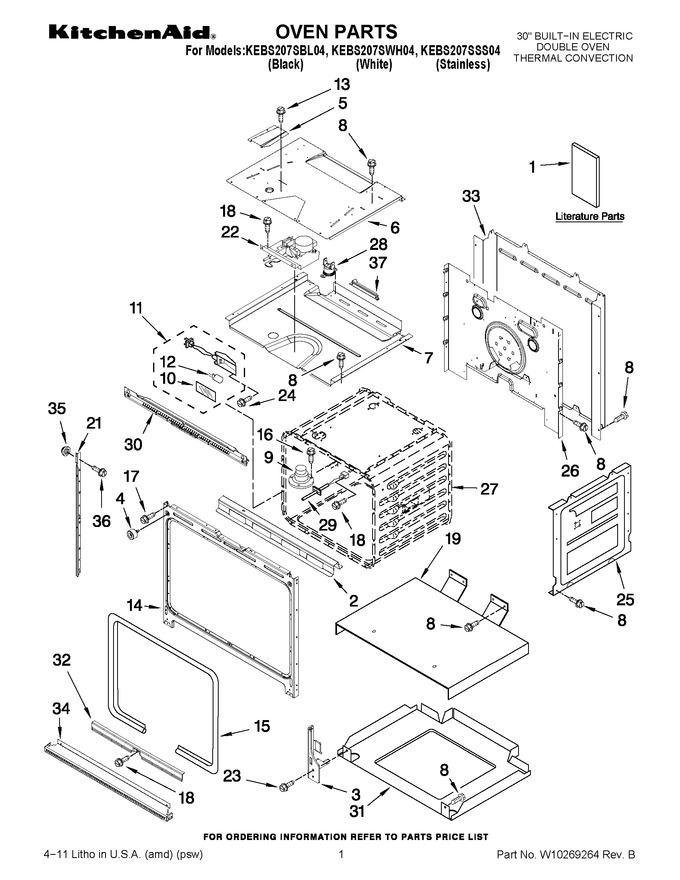

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8304336 | Installation Instructions |
|
- | |||||
| 1 | W10162180 | Use & Care Guide |
|
- | |||||
| 1 | W10220954 | Tech Sheet (english) |
|
- | |||||
| 1 | W10220955 | Tech Sheet (french) |
|
- | |||||
| 1 | 8304335 | Easy Set Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | W10153090 | Bracket, Base |
|
$ 35.56 | |||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 4 | W10105790 | Bumper, Door (2) |
|
$ 6.35 | |||||
| 5 | 8303829 | Exhaust,vent Slope |
|
$ 7.99 | |||||
| 6 | W10181196 | Divider, Center Vent |
|
- | |||||
| 7 | W10204470 | Top Chassis |
|
- | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 10 | W10169756 | Lens, Light |
|
$ 36.16 | |||||
| 11 | WPW10307114 | Oven Light Assembly (Replaces: W10009940) |
|
Immediately | $ 99.44 | ||||
| 12 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 42.64 | ||||
| 13 | WP3400832 | Screw (2) (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 14 | W10115861 | Frame, Front |
|
- | |||||
| 15 | WP8304493 | Gasket, Door (Replaces: 8304493) |
|
$ 160.62 | |||||
| 16 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 21 | 8303677BL | Mounting Rail, Side Right (black) |
|
- | |||||
| 21 | 8303678WH | Mounting Rail, Side Left (white) |
|
- | |||||
| 21 | 8303678BL | Mounting Rail, Side Left (black) |
|
- | |||||
| 21 | 8303677WH | Mounting Rail, Side Right (white) |
|
- | |||||
| 22 | W11029221 | Latch, Mortorized (Replaces: W10195935) |
|
Immediately | $ 280.85 | ||||
| 23 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 24 | 4449748 | Screw |
|
$ 12.20 | |||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 129.16 | |||||
| 26 | 8304303 | Back, Chassis |
|
- | |||||
| 27 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 28 | WP8304452 | Thermal Fuse 105c (Replaces: 8304452) |
|
Immediately | $ 104.76 | ||||
| 29 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 86.25 | ||||
| 30 | 8303685 | Vent, Center |
|
$ 61.46 | |||||
| 31 | 8303516 | Base, Chassis |
|
- | |||||
| 32 | 8304478 | Retainer, Gasket |
|
- | |||||
| 33 | 8303517 | Cover, Back |
|
$ 73.96 | |||||
| 34 | 8303705BL | Trim, Bottom Vent (black) |
|
$ 67.31 | |||||
| 34 | W10216230 | Trim, Bottom Vent (stainless) |
|
$ 75.03 | |||||
| 34 | 8303705WH | Trim, Bottom Vent (white) |
|
$ 66.38 | |||||
| 35 | WP4448444 | Grommet, Mounting Rail (Replaces: 4448444) |
|
$ 6.73 | |||||
| 36 | W10142289 | Screw (Replaces: 3400893) |
|
$ 8.24 | |||||
| 37 | W10169348 | Bracket, Thermostat |
|
$ 8.32 | |||||
| NI | 8303967 | Insulation, Back |
|
$ 55.31 | |||||
| NI | 8303965 | Insulation, Wrap |
|
$ 54.21 |
