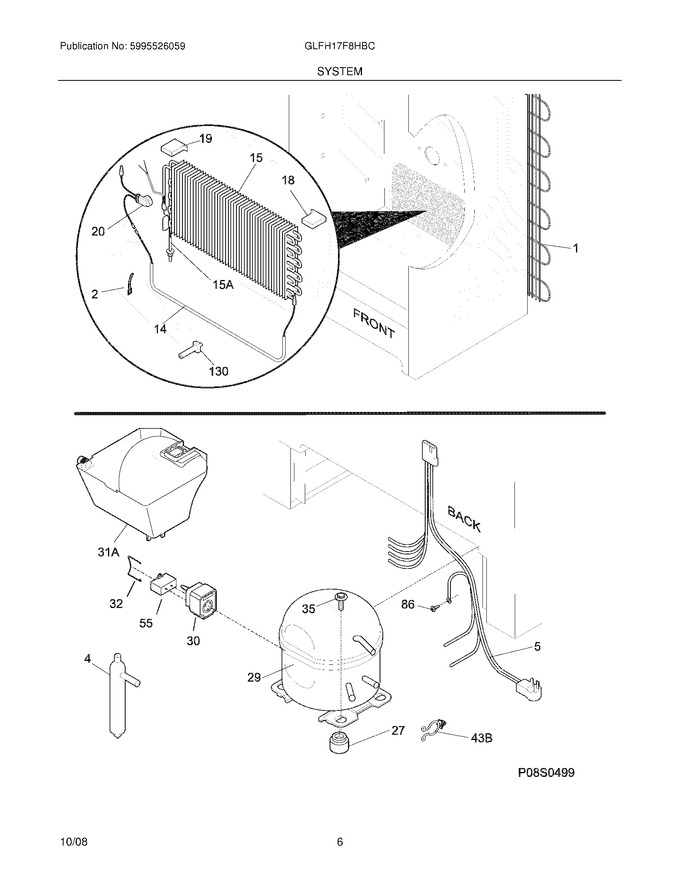

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
14	216730700		Heater-defrost   (Replaces: 297216100)			Immediately	$ 116.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954212		Controller,compressor				$ 106.17
32	216649200		Clip,controller				$ 6.30
35	297177200		Bolt,compressor		Appelez-nous	-
55	297286812		Capacitor,run ,12 Mf   (Replaces: 216985002)			Immediately	$ 11.78
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
130	297244700		Support,evaporator Mtg				$ 4.26
15A	297238700		Heat Exchanger				$ 95.81
31A	297251800		Pan-drain				$ 28.84
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F1	5300083897		Condenser				$ 538.37
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F29	5304478809		Compressor,w/o Electricals   (Replaces: 297237400)			Immediately	$ 584.96
F5	297237602		Harness-main		Appelez-nous	-
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297018400		Thermistor			Immediately	$ 79.52
NI	297102800		Spacer-tube		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85

    View Diagram in Separate Window       Print Part List
