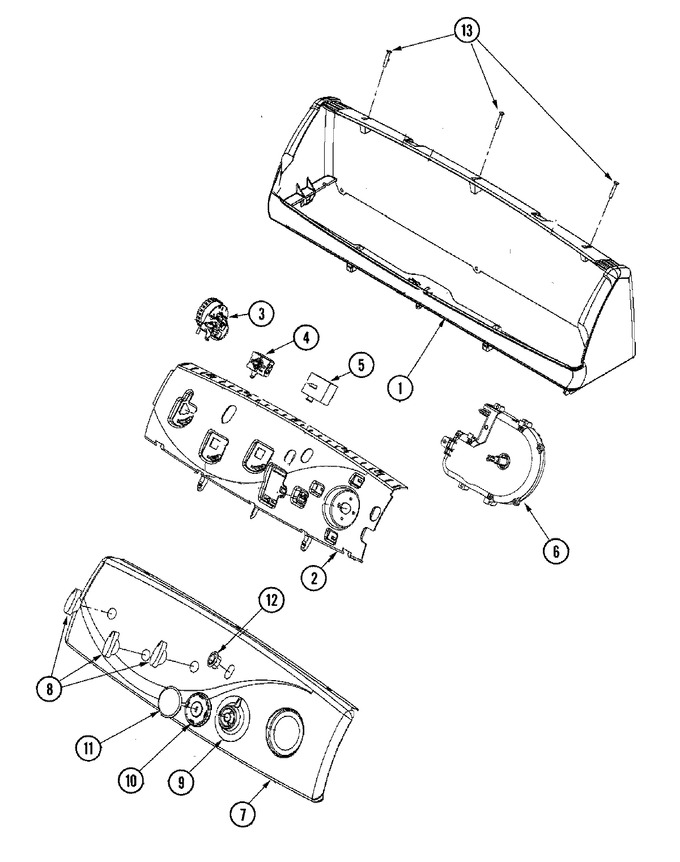

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003960 | Console Housing (wht) | 10 |
|
- | ||||
| 2 | 22003955 | Switch Support | 10 |
|
- | ||||
| 3 | WP22004188 | Switch, 4 Position Pressure (Replaces: 22004188) | 10 |
|
$ 144.71 | ||||
| 4 | 22004011 | 5 Pos. Atc Rotary Temp. Switch | 10 |
|
- | ||||
| 5 | 22004004 | 5 Position Rotary Speed Switch | 10 |
|
$ 16.04 | ||||
| 6 | WP33002917 | Screw, No.10-16 (Replaces: 33002917) | 10 |
|
Immediately | $ 6.90 | |||
| 6 | WP22004189 | Timer (Replaces: 22004189) | 10 |
|
$ 198.03 | ||||
| 7 | 22004190 | Facia (wht) | 10 |
|
- | ||||
| 8 | WP22003987 | Control Knob (ss) (Replaces: 22003988) | 10 |
|
$ 52.45 | ||||
| 9 | 22004165 | Timer Dial Skirt (wht) | 10 |
|
- | ||||
| 10 | 22004166 | Timer Dial Skirt (bsq) | 10 |
|
- | ||||
| 11 | WP22003989 | Timer Cap (ss) (Replaces: 22003990) | 10 |
|
Immediately | $ 41.84 | |||
| 12 | WP74010226 | Switch, Rocker (wht) (Replaces: 22003977) | 10 |
|
$ 86.45 | ||||
| 13 | 22003938 | Screw, Oval Ctsk Hd No.8 | 10 |
|
- |
