Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3182032 Liner, Oven (self Clean) Appelez-nous -
1 3182031 Liner, Oven (convection) Appelez-nous -
2 3150532 Screw Appelez-nous -
2 3182451 Element, Broil Appelez-nous -
3 3181534 Rack, Roaster Appelez-nous -
4 3181639 Rack, Offset Appelez-nous -
5 4396923 Grill, Broiler   (Replaces: 3147563) In-Stock Immediately $ 52.04

6 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 131.33

7 3150532 Screw (2) Appelez-nous -
8 4167277 Nut, Meat Probe Appelez-nous -
9 4163975 Gasket, Meat Probe Appelez-nous -
10 4167266 Probe Cover Appelez-nous -
11 3181638 Rack, Straight Oven Appelez-nous -
12 3179672 Spacer - Tubing Appelez-nous -
13 3150107 Receptacle, Probe Appelez-nous -
14 3150144 Meat Probe Special Order $ 106.70

15 313570 Clip, Tubing Appelez-nous -
19 3181724 Cover, Fan Appelez-nous -
19 3179117 Screw Appelez-nous -
20 3183003 Element, Convection Appelez-nous -
23 3150532 Screw Appelez-nous -
23 3180694 Bracket, Element Appelez-nous -
25 WP488729 Screw   (Replaces: 3148107) In-Stock Immediately $ 7.01

25 3148440 Sensor, Heat Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

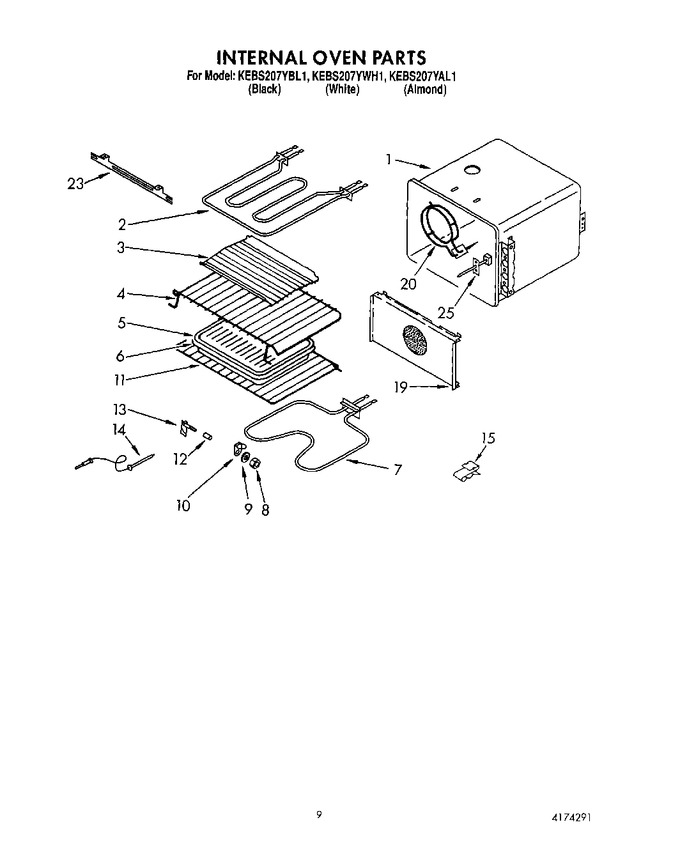

Diagram for KEBS207YBL1
