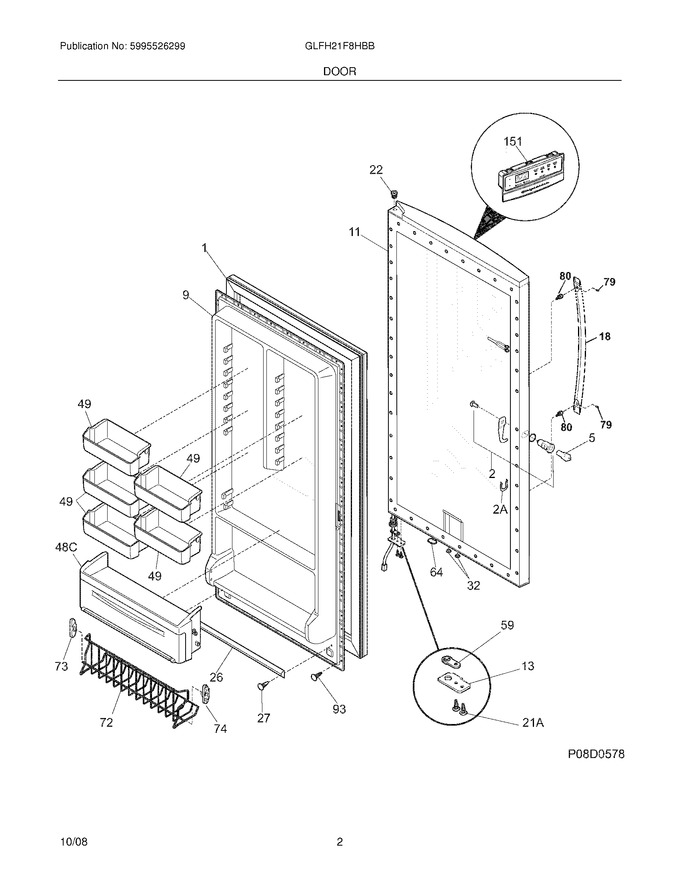

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507205		Gasket,black ,door   (Replaces: 216522317)				$ 180.64
5	297147700		Key,lock			Immediately	$ 7.57
9	297185900		Panel-inner Door,frzr				$ 193.49
11	297203903		Panel-outer Door,black		Appelez-nous	-
13	297154801		Door Stop,black ,rh/lh		Appelez-nous	-
18	241930103		Handle-door,black				$ 213.98
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
27	5303212828		Clip,panel Mtg				$ 16.63
32	5309950074		Valve, Breather				$ 12.48
49	297187201		Bin-door,2-liter				$ 77.75
59	216974500		Bearing,door Closer				$ 15.54
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297186700		Shelf,tilt Out ,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,door Stop/hng   (Replaces: 216850900)				$ 13.46
2A	297090900		Clip,spring				$ 10.85
48C	297350101		Bin-door,w/lid   (Replaces: 297186400)			Immediately	$ 139.23
F151	297241907		Control-electronic,assy ,black/chrome ,115v		Appelez-nous	-
F2	297090000		Lock Assy		Appelez-nous	-
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	240537301		Nut-anchor,door Hdl Screw				$ 11.34
