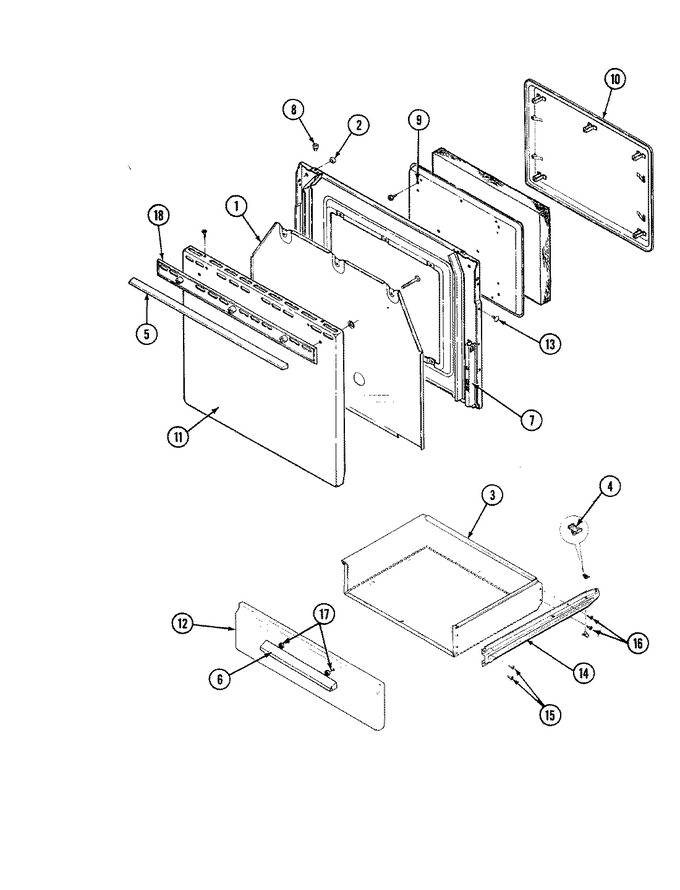

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F095-51 | Baffle | 01 |
|
- | ||||
| 1 | 3801F115-51 | Bracket, Drawer | 01 |
|
- | ||||
| 1 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 2 | 8003P002-60 | Bumper Door (round) | 01 |
|
- | ||||
| 3 | 3405F008-80 | Drawer, Service | 01 |
|
- | ||||
| 4 | 8016P009-60 | Glide, Drawer | 38 |
|
- | ||||
| 4 | 8016P004-60 | Glide, Drawer | 38 |
|
- | ||||
| 4 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 5 | 7701P030-60 | Handle, Door (chr) | 01 |
|
- | ||||
| 6 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 6 | 7701P012-60 | Handle, Drawer (chr) | 01 |
|
- | ||||
| 7 | 2402W128-15 | Lining | 01 |
|
- | ||||
| 8 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 01 |
|
$ 9.89 | ||||
| 9 | 2410F012-51 | Pad, Inner Ov Dr | 01 |
|
- | ||||
| 10 | 2410W028-15 | Pad Assy, O.d. Solid | 01 |
|
- | ||||
| 11 | 2401F043-74 | Panel, Oven Dr-a | 01 |
|
- | ||||
| 12 | 2416F017-74 | Panel, Storage Drawer Alm | 01 |
|
- | ||||
| 13 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 14 | 3406F020-80 | Runner, Inner | 01 |
|
- | ||||
| 14 | 3406F026-80 | Runner, Inner | 38 |
|
- | ||||
| 15 | 7101P225-60 | Screw, Svc Door | 01 |
|
- | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 16 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 17 | 8010P002-60 | Spacer, Handle | 01 |
|
- | ||||
| 18 | 7720P063-60 | Trim, Handle | 01 |
|
- |
