SELECT A DIAGRAM

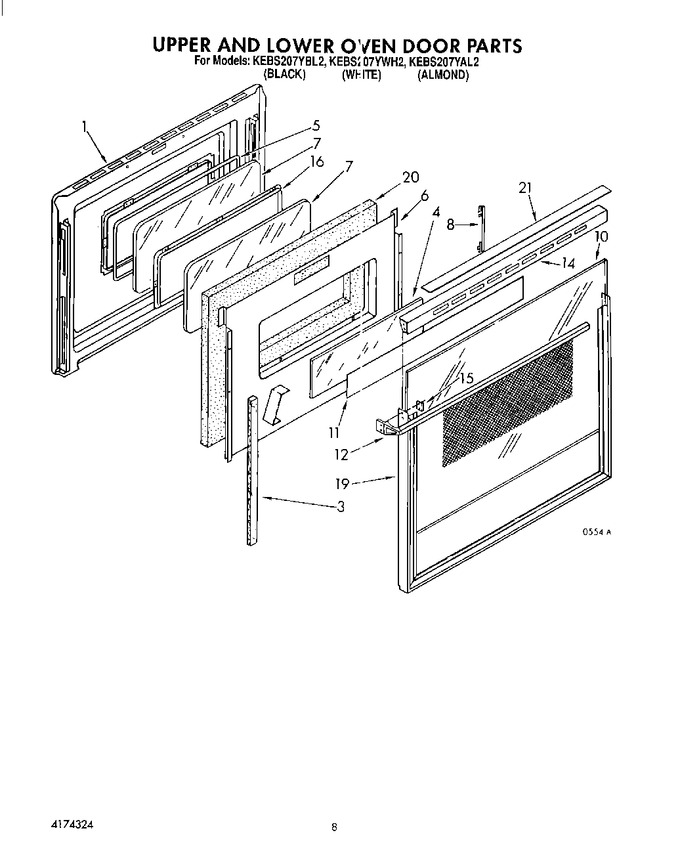

01 - Control Panel, Literature


02 - Upper Oven


03 - Lower Oven


04 - Convection Fan


05 - Vent And Latch


06 - Upper And Lower Oven Door


07 - Internal Oven


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw (5)   (Replaces: 3182346)			Immediately	$ 7.08
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
4	3148443		Screw (4)		Appelez-nous	-
5	3148183		Seal, Door				$ 7.41
6	3148159		Retainer,		Appelez-nous	-
7	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
10	3148185		Glass, Panel (black)		Appelez-nous	-
10	3150348		Glass, Panel (almond)		Appelez-nous	-
10	3150347		Glass, Panel (white)		Appelez-nous	-
11	3148184		Foil, Door		Appelez-nous	-
12	3183402		Handle, Door (black)		Appelez-nous	-
12	3183403		Handle, Door (white)		Appelez-nous	-
12	3183404		Handle, Door (almond)		Appelez-nous	-
12	WP355515		Handle, Door (screw (4))   (Replaces: 355515)				$ 6.90
14	3148223		Top, Door (black Model)		Appelez-nous	-
14	WP355515		Top, Door (screw (4))   (Replaces: 355515)				$ 6.90
14	3149355		Top, Door (white/almond Model)		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148443		Screw (6)		Appelez-nous	-
16	3148234		Frame, Inner		Appelez-nous	-
19	3148235		Frame, Panel		Appelez-nous	-
20	3147951		Insulation, Door		Appelez-nous	-
21	3181363		Cap, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
