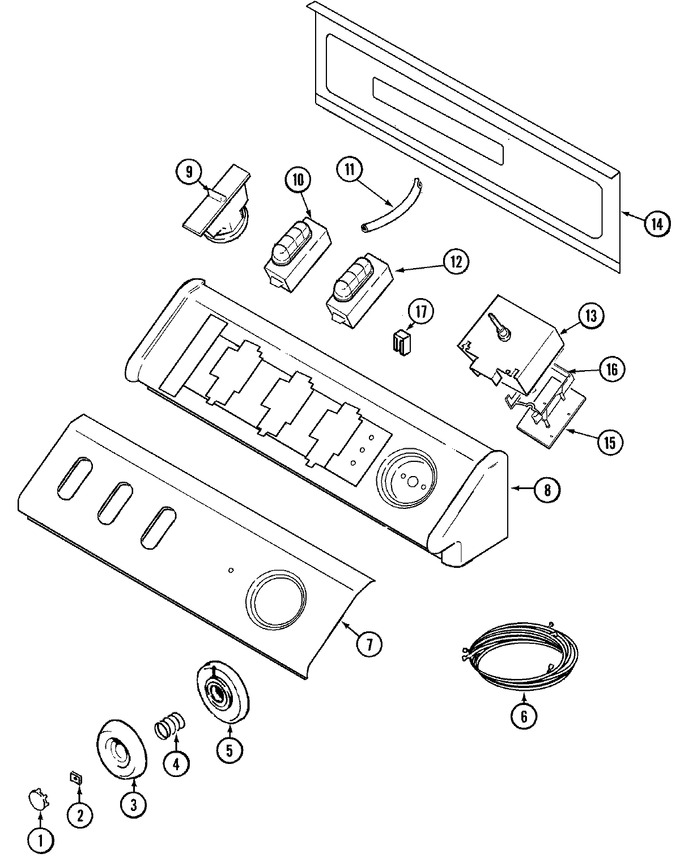

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33002347		Timer Knob Insert/cap	10			$ 22.30
2	211605		Retainer, Timer Knob	10	Appelez-nous	-
3	WP22001659		Timer Knob - Grey   (Replaces: 22001659)	10			$ 26.38
4	211065		Spring, Timer Knob	10			$ 5.70
5	22002598		Bezel, Timer Dial (bsq)	10	Appelez-nous	-
6	22002728		Wire Harness	10	Appelez-nous	-
7	22002808		Panel, Control (bsq)	10	Appelez-nous	-
8	33002327		Console (bsq)	10	Appelez-nous	-
9	22002804		Switch, Pressure (bsq)	10	Appelez-nous	-
9	22003461		Pad, Pressure Switch	14	Appelez-nous	-
10	22002937		Switch, Temperature (4pos.bsq)	10	Appelez-nous	-
10	22002697		Button, Switch (bsq-end)	10	Appelez-nous	-
10	22002698		Button, Switch (bsq-mdl)	10	Appelez-nous	-
11	22002743		Tube, Water Level Switch	10	Appelez-nous	-
11	22003422		Hose, Air Dome	14	Appelez-nous	-
11	22003237		Air Dome Hose	12	Appelez-nous	-
12	22002697		Button, Switch (bsq-end)	10	Appelez-nous	-
12	22002805		Switch, Option (bsq)	10	Appelez-nous	-
12	22002698		Button, Switch (bsq-mdl)	10	Appelez-nous	-
13	22002717		Timer	10	Appelez-nous	-
13	WP3400094		Screw, Timer   (Replaces: 22001661)	10			$ 7.14
14	22002529		Console Back Panel	10	Appelez-nous	-
15	22002857		Board, Control	10	Appelez-nous	-
16	22002856		Bracket, Mtg. (ctl. Board)	10	Appelez-nous	-
17	WP22001948		Lens, Indicator Light   (Replaces: 22001948)	10			$ 11.42
17	903115		Lock Light	10			$ 5.70
18	22002807		Manual, Use & Care (french)	10	Appelez-nous	-
18	16009485		Manual, Service-no Refund	10	Appelez-nous	-
18	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-
18	22002806		Manual, Use & Care	10	Appelez-nous	-
