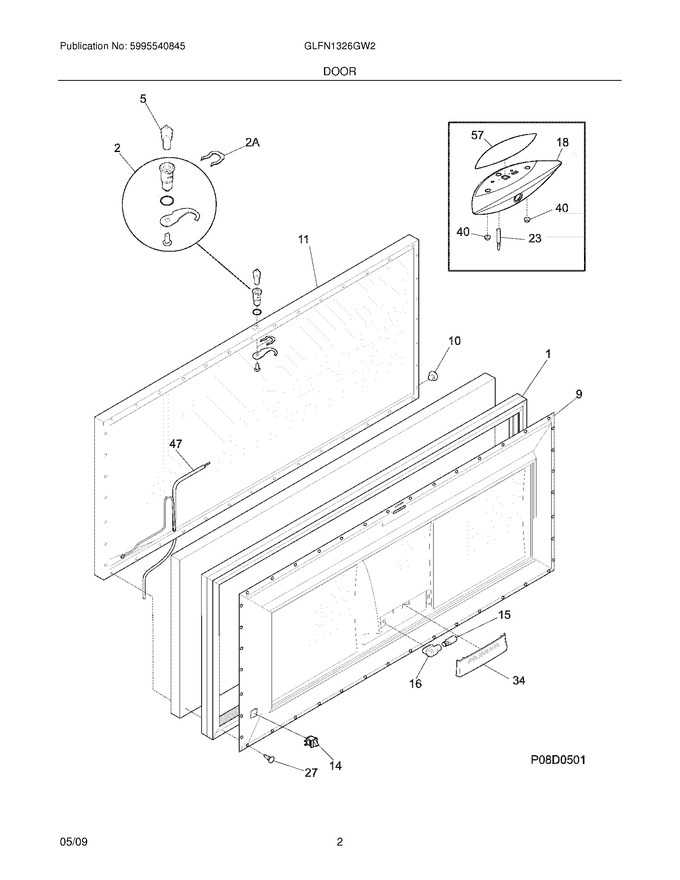

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481101		Gasket-door, White				$ 224.81
2	297090100		Lock Assy				$ 21.27
5	297147700		Key,lock			Immediately	$ 7.57
9	216828904		Panel-lid				$ 171.31
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216129827		Lid,white				$ 284.97
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
15	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 50.45
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216897600		Handle,white				$ 60.58
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
34	216578515		Shield-light		Appelez-nous	-
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
57	216899514		Overlay				$ 46.57
2A	297090900		Clip,spring				$ 10.85
F47	216908000		Harness-lid				$ 148.89
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
