01 - Base
02 - Cabinet
03 - Control Panel
04 - Top
05 - Transmission
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

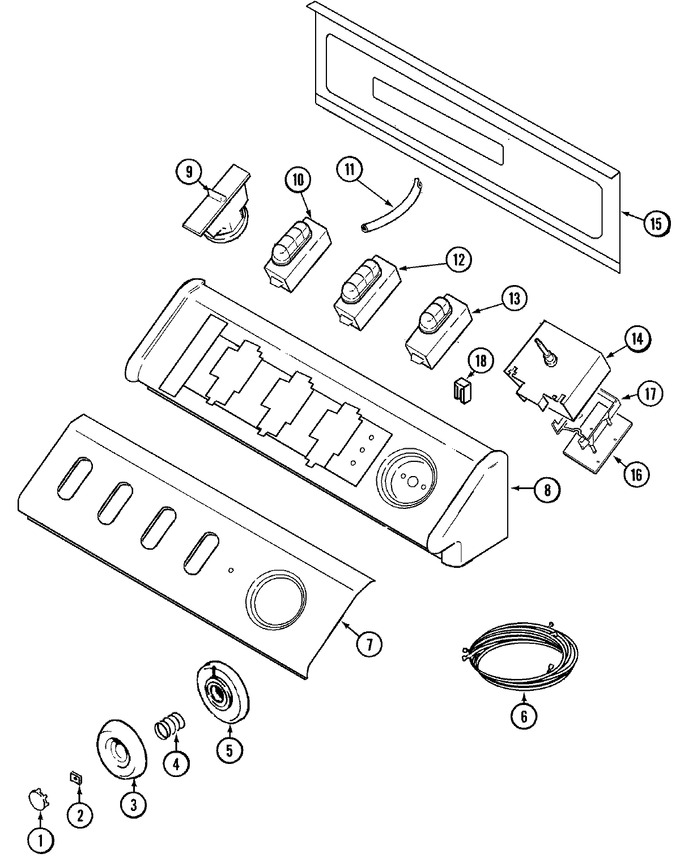

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 2 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 3 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
$ 26.38 | ||||
| 4 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 5 | 22001660 | Dial Skirt - White | 10 |
|
$ 21.47 | ||||
| 6 | 22002827 | Wire Harness | 10 |
|
- | ||||
| 7 | 22002826 | Panel, Control (bsq) | 10 |
|
- | ||||
| 7 | 22002825 | Panel, Control (wht) | 10 |
|
- | ||||
| 8 | 33002286 | Console (wht) | 10 |
|
- | ||||
| 9 | 22002705 | Switch, Pressure | 10 |
|
$ 79.45 | ||||
| 9 | 22003461 | Pad, Pressure Switch | 14 |
|
- | ||||
| 10 | 22001789 | Button, Switch (wht-mdl) | 10 |
|
- | ||||
| 10 | 22001788 | Button, Switch (wht-end) | 10 |
|
- | ||||
| 10 | 22002936 | Switch, Temperature (4pos.wht) | 10 |
|
- | ||||
| 11 | 22003422 | Hose, Air Dome | 14 |
|
- | ||||
| 11 | 22002743 | Tube, Water Level Switch | 10 |
|
- | ||||
| 11 | 22003237 | Air Dome Hose | 12 |
|
- | ||||
| 12 | 22001789 | Button, Switch (wht-mdl) | 10 |
|
- | ||||
| 12 | 22002711 | Switch, 4 Button Option / Wht | 10 |
|
- | ||||
| 12 | 22001788 | Button, Switch (wht-end) | 10 |
|
- | ||||
| 13 | 22001789 | Button, Switch (wht-mdl) | 10 |
|
- | ||||
| 13 | 22002698 | Button, Switch (bsq-mdl) | 10 |
|
- | ||||
| 13 | 22002829 | Switch, Option | 10 |
|
- | ||||
| 13 | 22001788 | Button, Switch (wht-end) | 10 |
|
- | ||||
| 14 | WP3400094 | Screw, Timer (Replaces: 22001661) | 10 |
|
$ 7.14 | ||||
| 14 | 22002828 | Timer | 10 |
|
- | ||||
| 15 | 22002529 | Console Back Panel | 10 |
|
- | ||||
| 16 | 22002857 | Board, Control | 10 |
|
- | ||||
| 17 | 22002856 | Bracket, Mtg. (ctl. Board) | 10 |
|
- | ||||
| 18 | 903115 | Lock Light | 10 |
|
$ 5.70 | ||||
| 18 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.42 | ||||
| 19 | 22002813 | Manual, Use & Care (french) | 10 |
|
- | ||||
| 19 | 16009485 | Manual, Service-no Refund | 10 |
|
- | ||||
| 19 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- | ||||
| 19 | 22002812 | Manual, Use & Care | 10 |
|
- |
