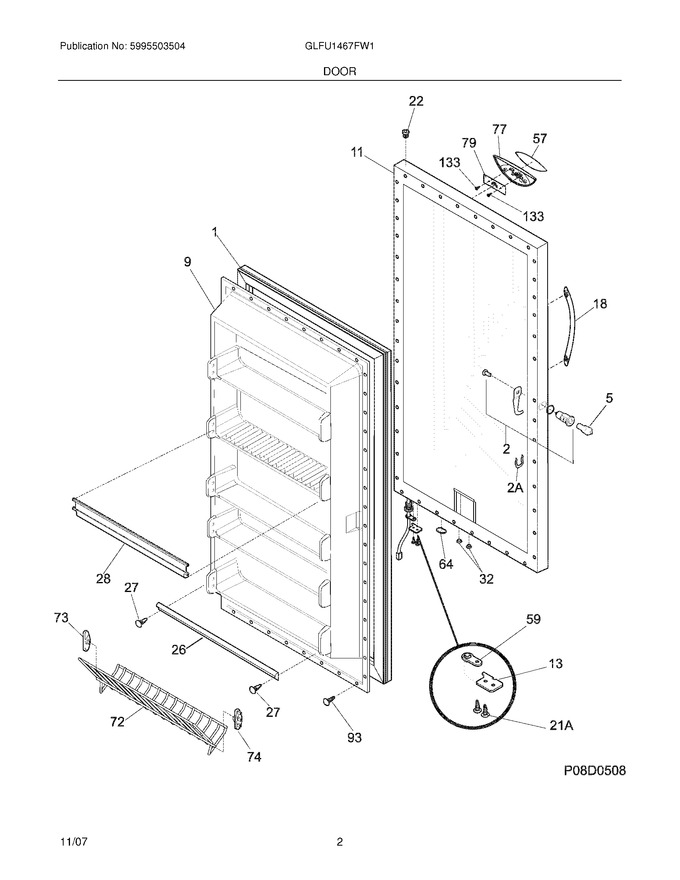

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507201		Gasket,door Seal ,white   (Replaces: 216522306)			Immediately	$ 185.36
5	297147700		Key,lock			Immediately	$ 7.57
9	216527615		Panel-inner Door,frzr				$ 304.43
11	216557842		Panel-outer Door,white				$ 346.50
13	5303271076		Door Stop				$ 16.30
18	216921200		Handle,white		Appelez-nous	-
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524300		Gasket,secondary				$ 27.56
27	5303212828		Clip,panel Mtg				$ 16.63
28	216806101		Rack-door,contour ,(4)		Appelez-nous	-
32	5309950074		Valve, Breather				$ 12.48
57	297072601		Overlay		Appelez-nous	-
59	216974500		Bearing,door Closer				$ 15.54
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297118101		Shelf,tilt Out ,tall ,wire				$ 50.38
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
77	297072500		Bezel				$ 29.63
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
133	216905300		Screw,control Board ,no.3-24 X .25		Appelez-nous	-
21A	5304460608		Screw,flat Head ,no.1/4-20 ,door Stop/hng				$ 13.39
2A	297090900		Clip,spring				$ 10.85
F2	297090000		Lock Assy		Appelez-nous	-
F79	216944300		Control Board,digital				$ 161.94
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	216932501		Nut,flange Locking ,handle				$ 6.10
