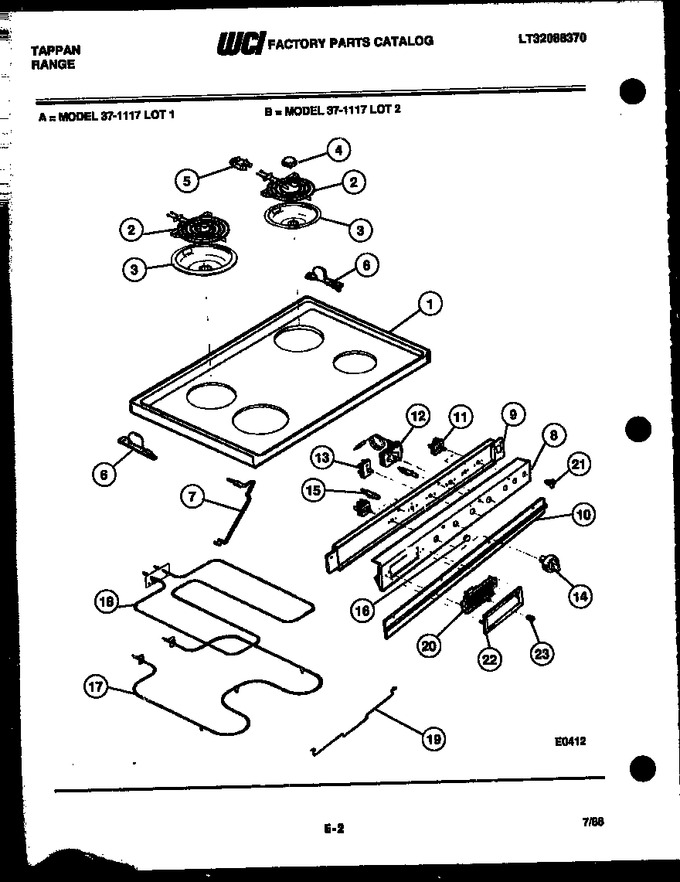

02 - Cooktop, Broiler And Backguard
03 - Backguard
04 - Door Parts
05 - Body Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051380 | Main Top, Almond |
|
- | |||||
| 2 | 3051450 | Element-top Large |
|
- | |||||
| 3 | 542T021P01 | Pan-elem. Large |
|
- | |||||
| 4 | 445T006P01 | Medallion (4) |
|
- | |||||
| 5 | 3051402 | Block-term(4) |
|
- | |||||
| 6 | 3131286 | Brkt-hnge - Lh |
|
- | |||||
| 7 | 618T03P05 | Top Supt Rod (2) |
|
- | |||||
| 8 | 3051208 | Panel-manifold |
|
- | |||||
| 9 | 3051508 | Plate-inst. Mtg. |
|
- | |||||
| 10 | 3051145 | Extrus.-heat Shield |
|
- | |||||
| 11 | 699T015P02 | Switch, Top (4) |
|
- | |||||
| 12 | 3051321 | Thermostat |
|
- | |||||
| 13 | 3016812 | Switch-selector |
|
- | |||||
| 14 | 3051173 | Knob-control (4) |
|
- | |||||
| 15 | 318T023P11 | Light-indic. (125v) (2) |
|
- | |||||
| 16 | 342T014P01 | Jewel-ind. (3) |
|
- | |||||
| 17 | 3051388 | Elemnt-oven Bake |
|
- | |||||
| 18 | 3051140 | Elemnt-oven Broil |
|
- | |||||
| 19 | 3051373 | Supt-element |
|
- | |||||
| 20 | 3131655 | Clock |
|
- | |||||
| 21 | 3051314 | Switch, Oven Light |
|
- | |||||
| 22 | 3051114 | Bezel, Clock |
|
- | |||||
| 23 | 358T201P01 | Knob, Clock |
|
- | |||||
| 14A | 3051506 | Knob-thermo. |
|
- | |||||
| 14B | 3051505 | Knob-sel. Sw. |
|
- | |||||
| 15A | 318T023P12 | Light-indic. (250v) |
|
- | |||||
| 19A | 3051224 | Retainer Lens (3) (non-illustrated) |
|
- | |||||
| 2A | 3053449 | Element-top-sml (3) |
|
- | |||||
| 3A | 542T021P02 | Pan-elem. Sm. (3) |
|
- | |||||
| 6A | 3131287 | Brkt-hnge Rh |
|
- |
