SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Internal Oven


03 - Upper Oven


04 - Lower Oven


05 - Convection Fan


06 - Latch And Vent


07 - Upper And Lower Oven Door


08 - Wiring Harness

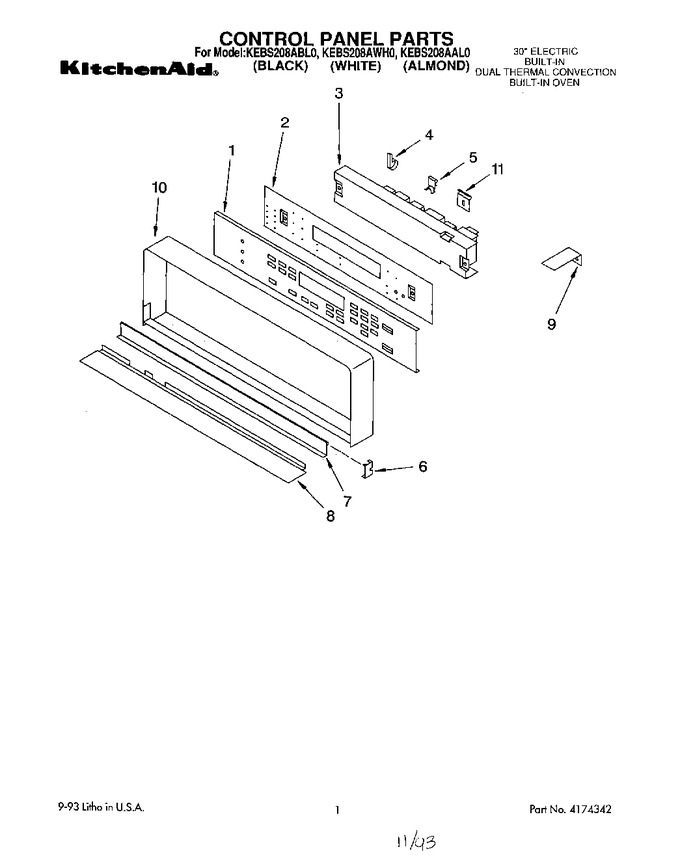

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3187067		Membrane, Switch (black)		Appelez-nous	-
1	3187068		Membrane, Switch (white)		Appelez-nous	-
1	3187069		Membrane, Switch (almond)		Appelez-nous	-
2	3181889		Bracket, Mounting Switch Membrane		Appelez-nous	-
3	3179117		Screw		Appelez-nous	-
3	3184922		Microcomputer		Appelez-nous	-
4	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
4	488946		Strain Relief   (Replaces: 255564)				$ 18.41
5	3182985		Clip, Retainer		Appelez-nous	-
6	3182162		Trim, Door		Appelez-nous	-
7	3182158		Door, Latch Handle (almond)		Appelez-nous	-
7	3182155		Door, Latch Handle (white)		Appelez-nous	-
7	3182152		Door, Latch Handle (black)		Appelez-nous	-
8	3148443		Screw		Appelez-nous	-
8	3183703		Trim, Panel		Appelez-nous	-
9	3182939		Screw		Appelez-nous	-
9	3185424		Bracket		Appelez-nous	-
10	3182149		Frame, Control Panel		Appelez-nous	-
11	3184567		Clip, Control Frame		Appelez-nous	-
	LIT3187080		Use & Care Guide		Appelez-nous	-
	LIT3187359		Installation Instructions		Appelez-nous	-
	LIT3187653		Tech Sheet		Appelez-nous	-
	LIT3183987		Guide, Auto Set		Appelez-nous	-
	LIT3150693		Cookbook		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
