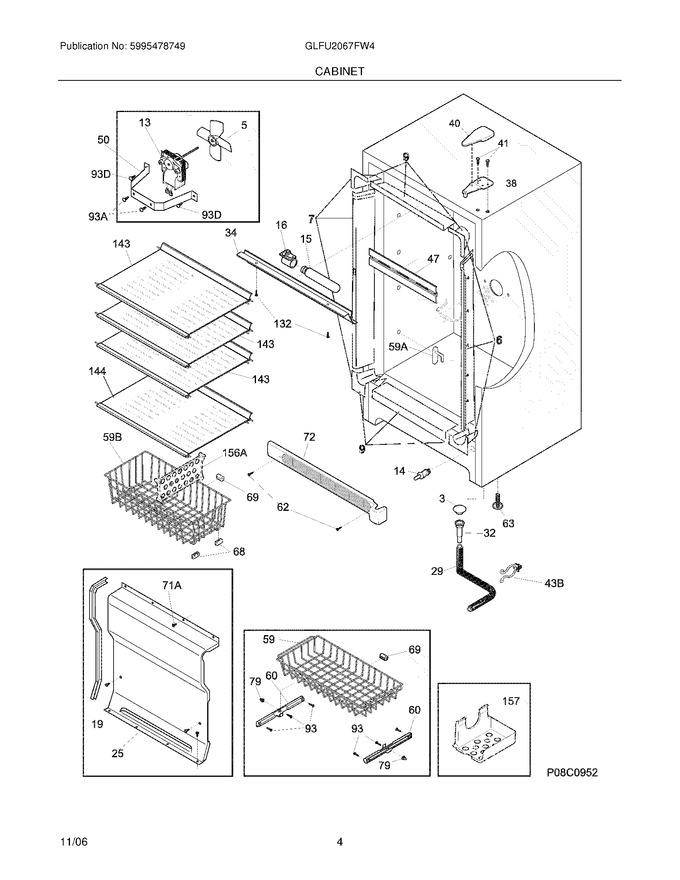

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Light Bulb/lamp,long ,blue Tint ,40 W ,120v   (Replaces: 216988100)			Immediately	$ 73.06
16	297139500		Socket,light/lamp,25 W   (Replaces: 216817601)				$ 18.08
19	216204901		Gasket-cover Evap				$ 9.08
25	297099001		Cover-evaporator		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816221		Shield-light		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	216936800		Screw-hinge,12-24x.700 Hwh		Appelez-nous	-
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
59	216880100		Basket				$ 104.32
60	297013500		Slide,basket ,(2)				$ 38.98
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide Basket (4)				$ 35.25
69	5305878546		Bumper-basket,(4)				$ 7.23
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 39.29
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
143	216922302		Shelf-assy,fixed,glass ,(3) ,complete		Appelez-nous	-
144	216922300		Shelf-assy,fixed,glass ,(3) ,complete		Appelez-nous	-
157	297071900		Shelf,small Items				$ 34.07
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
59A	216486500		Stop-basket,(2)				$ 20.58
59B	216826500		Basket		Appelez-nous	-
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
93D	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F156	297071700		Divider,basket ,(2)		Appelez-nous	-
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297088700		Guide-electronic Control		Appelez-nous	-
NI	240494001		Plug,white   (Replaces: 297095300)			Immediately	$ 18.20
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216795511		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	216893800		Cover,external ,ice Maker ,(2)		Appelez-nous	-
NI	241586701		Plug-foam-wtr-inlet,round				$ 17.72
