01 - Control Panel, Literature


02 - Internal Oven


03 - Upper Oven


04 - Lower Oven


05 - Convection Fan


06 - Latch And Vent


07 - Upper And Lower Oven Door


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3185647		Screw (4)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Door				$ 7.41
6	4173601		Screw		Appelez-nous	-
6	3148159		Retainer,		Appelez-nous	-
7	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
8	3188553		Retainer, Glass (2)		Appelez-nous	-
10	3188052		Glass, Panel (black Model)		Appelez-nous	-
10	3188051		Glass, Panel (almond Model)		Appelez-nous	-
10	3188050		Glass, Panel (white Model)		Appelez-nous	-
11	3188706		Foil, Door		Appelez-nous	-
12	3149253		Handle, Door (screw (4))		Appelez-nous	-
12	3186524		Handle, Door (black)		Appelez-nous	-
12	3186525		Handle, Door (white)		Appelez-nous	-
12	3186526		Handle, Door (almond)		Appelez-nous	-
12	254225		Handle, Door (screw (2))		Appelez-nous	-
14	3148223		Top, Door (black Model)		Appelez-nous	-
14	3149355		Top, Door (white/almond Model)		Appelez-nous	-
15	3149333		Screw				$ 5.33
15	3148282		Clip, Mtg (2)				$ 8.69
16	3185647		Screw		Appelez-nous	-
16	3148234		Frame, Inner		Appelez-nous	-
19	3187921		Frame, Panel (almond Model)		Appelez-nous	-
19	3171530		Frame, Panel (black Model)		Appelez-nous	-
19	3187920		Frame, Panel (white Model)		Appelez-nous	-
20	3147951		Insulation, Door		Appelez-nous	-
21	3181367		Cap, Top (white Model)		Appelez-nous	-
21	3181366		Cap, Top (black Model)		Appelez-nous	-
21	3188375		Cap, Top (almond Model)		Appelez-nous	-
21	3188400		Cap, Top (screw)		Appelez-nous	-

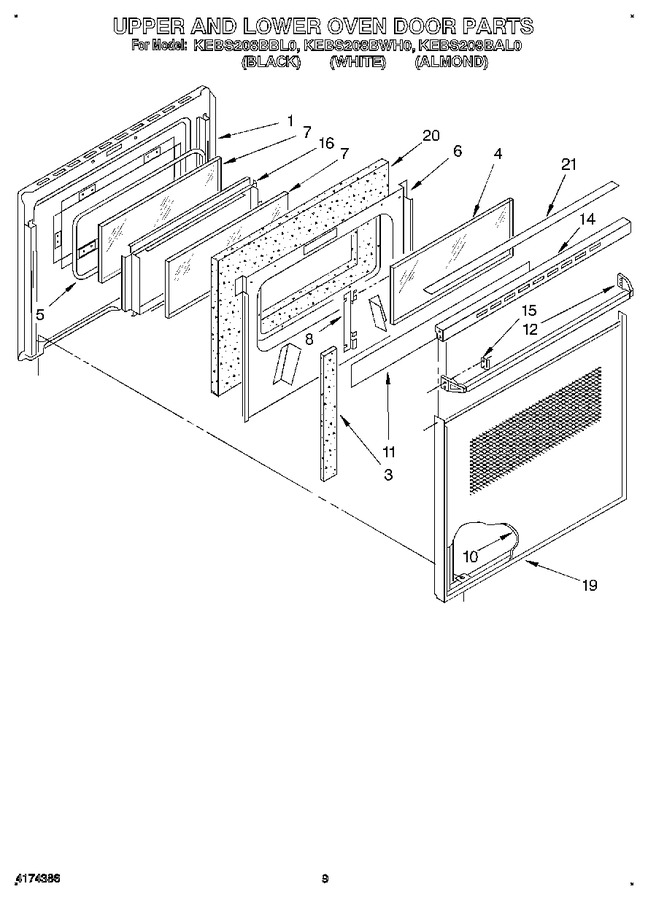

    View Diagram in Separate Window       Print Part List
