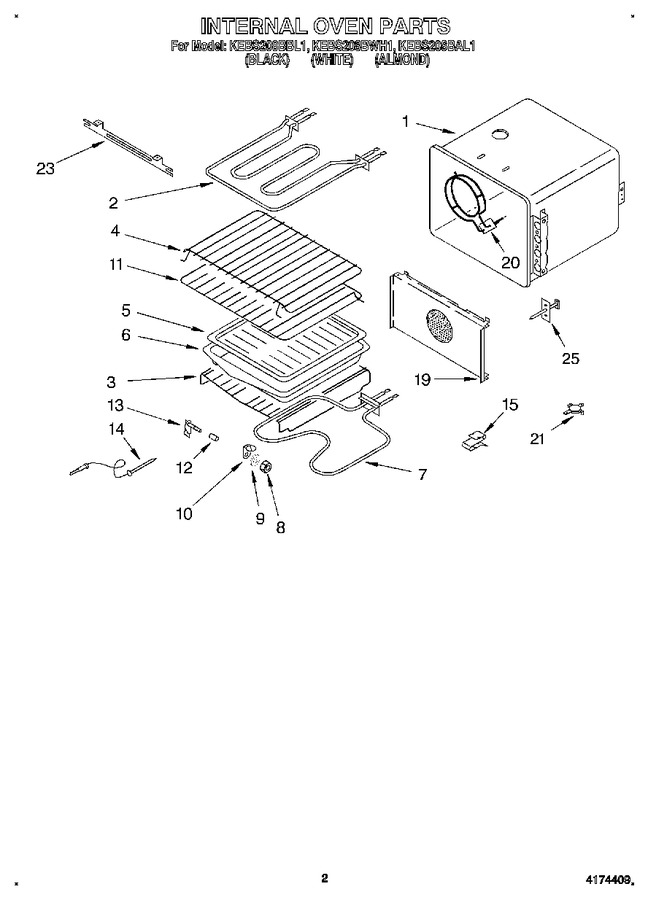

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3182031		Liner, Oven		Appelez-nous	-
2	661417		Element, Broil		Appelez-nous	-
2	3150532		Screw		Appelez-nous	-
3	3187601		Rack, Roaster		Appelez-nous	-
4	3181639		Rack, Offset		Appelez-nous	-
5	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
6	3187600		Pan, Broiler		Appelez-nous	-
7	WP661416		Element, Bake   (Replaces: 661416)				$ 131.33
7	3150532		Screw (2)		Appelez-nous	-
8	4167277		Nut, Meat Probe		Appelez-nous	-
9	4163975		Gasket, Meat Probe		Appelez-nous	-
10	4167266		Probe Cover		Appelez-nous	-
11	3181638		Rack, Straight Oven		Appelez-nous	-
12	3179672		Spacer - Tubing		Appelez-nous	-
13	3150107		Receptacle, Probe		Appelez-nous	-
14	3150144		Meat Probe				$ 106.70
15	313570		Clip, Tubing		Appelez-nous	-
19	3179117		Screw		Appelez-nous	-
19	3181724		Cover, Fan		Appelez-nous	-
20	661460		Element, Convection		Appelez-nous	-
21	3149653		Spst Thermostat				$ 134.40
23	3180694		Bracket, Element		Appelez-nous	-
23	3150532		Screw		Appelez-nous	-
25	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
25	3148440		Sensor, Heat		Appelez-nous	-
