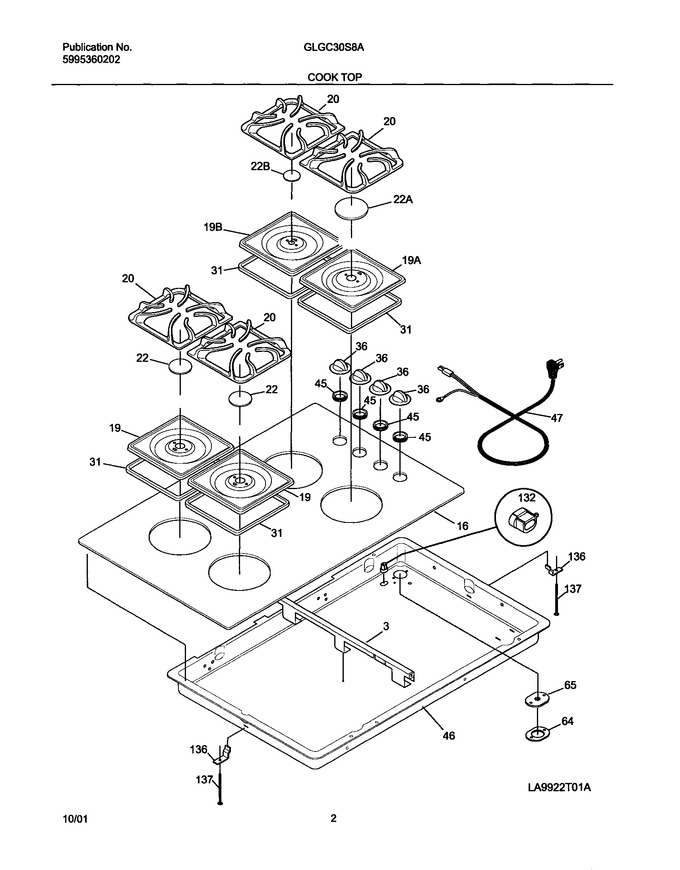

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171400		Support,glass		Appelez-nous	-
16	318018531		Main Top,bisque		Appelez-nous	-
19	318168117		Pan,burner ,bisque ,medium		Appelez-nous	-
20	318120108		Grate,brown ,(4)		Appelez-nous	-
22	318076414		Cap,burner ,brown ,medium Lf & Lr		Appelez-nous	-
31	318053901		Gasket,burner Pan				$ 33.60
36	318196102		Knob,control ,bisque		Appelez-nous	-
45	318146220		Bushing		Appelez-nous	-
46	5303307897		Burner Box		Appelez-nous	-
64	5303304033		Bracket,retainer		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
19A	318168127		Pan,burner ,bisque ,large		Appelez-nous	-
19B	318168107		Pan,burner ,bisque ,small		Appelez-nous	-
22A	318076424		Cap,burner ,brown ,large Rf		Appelez-nous	-
22B	318076404		Cap,burner ,brown ,small Rr		Appelez-nous	-
F47	5303303991		Cord-electric Power				$ 96.50
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
