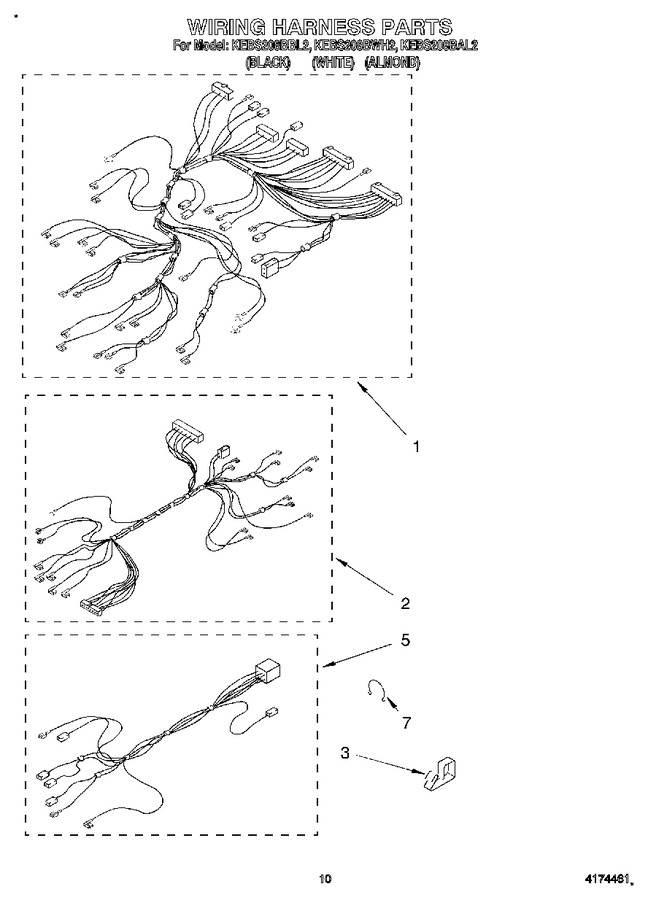

08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187612 | Wiring Harness Upper Oven |
|
- | |||||
| 2 | 3187613 | Wiring Harness Lower Oven |
|
- | |||||
| 3 | 3184809 | Clip, Wire |
|
- | |||||
| 5 | 3187558 | Harness, Wire Lower Latch |
|
- | |||||
| 7 | 16515 | Clip (Replaces: 313438) |
|
$ 17.60 | |||||
| 7 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 |
