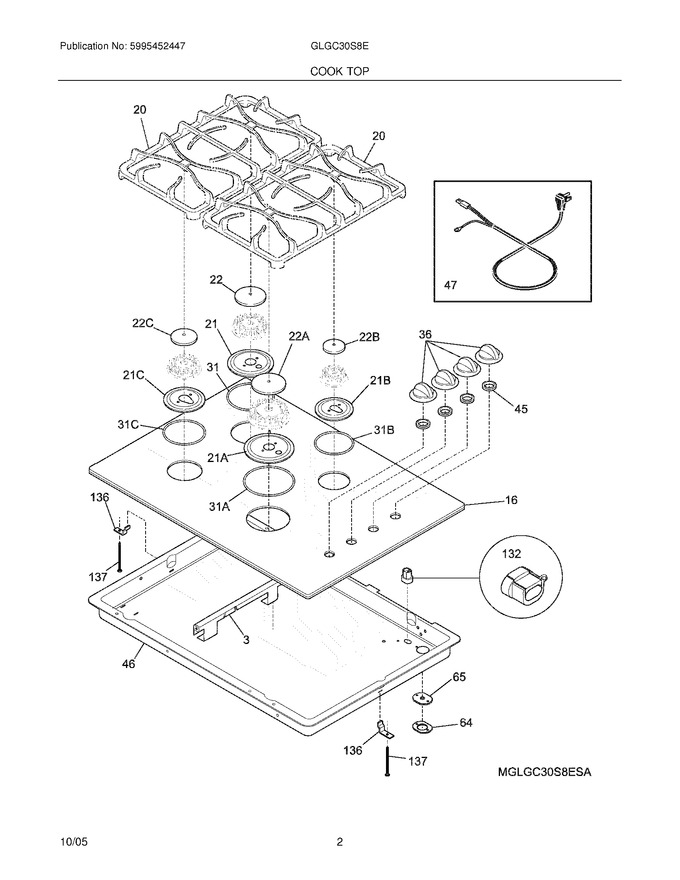

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171401		Support		Appelez-nous	-
16	318018539		Main Top,glass ,white		Appelez-nous	-
20	318321301		Grate,double ,gray ,(2)		Appelez-nous	-
21	316241700		Skirt,11k Burner ,gray		Appelez-nous	-
22	316242801		Cap,11k Burner ,gray		Appelez-nous	-
31	316242001		Seal,12k Burner				$ 23.06
36	318196155		Knob,control ,white				$ 56.81
45	318146201		Bushing,white		Appelez-nous	-
46	318077420		Burner Box		Appelez-nous	-
47	318144006		Cord,service		Appelez-nous	-
64	5303304033		Bracket,retainer		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
21A	316264900		Skirt,14k Burner ,gray		Appelez-nous	-
21B	316241900		Skirt,5k Burner ,gray		Appelez-nous	-
21C	316241800		Skirt,9.5k Burner ,gray		Appelez-nous	-
22A	316219801		Cap,14k Burner ,gray		Appelez-nous	-
22B	316206501		Cap,5k Burner ,gray				$ 155.40
22C	316242901		Cap,9.5k Burner ,gray		Appelez-nous	-
31A	316242000		Seal,14k Burner				$ 73.71
31B	316242003		Seal,5k Burner				$ 15.17
31C	316242002		Seal,9.5k Burner				$ 25.02
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
