SELECT A DIAGRAM
01 - Oven, Literature

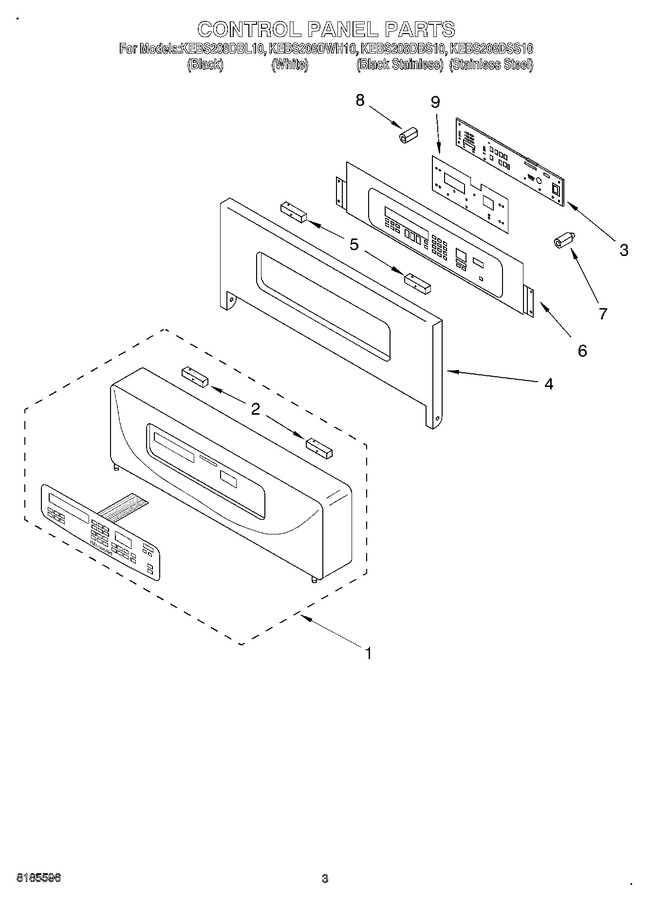

02 - Control Panel
03 - Oven Door
04 - Internal Oven
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8300373 | Control Panel Assy W/membrane, Switch (black & Black Stainless) |
|
- | |||||
| 1 | 8300372 | Control Panel Assy W/membrane, Switch (white Model) |
|
- | |||||
| 1 | 4451791 | Control Panel Assy W/membrane Switch (stainless Steel) |
|
- | |||||
| 2 | 4451034 | Gasket, Control Panel |
|
- | |||||
| 3 | 4453165 | Microcomputer |
|
- | |||||
| 3 | WP3400832 | Screw (Replaces: 8281179) |
|
Immediately | $ 6.98 | ||||
| 4 | 4451791 | Panel, Control |
|
- | |||||
| 5 | 4452260 | Spacer, Foam |
|
- | |||||
| 6 | 4452379 | Membrane Switch |
|
- | |||||
| 7 | 4452248 | Insulation, Board |
|
- | |||||
| 8 | 4452249 | Insulation, Board Support |
|
- | |||||
| 9 | 4455251 | Insulator, Dialectric |
|
- |
