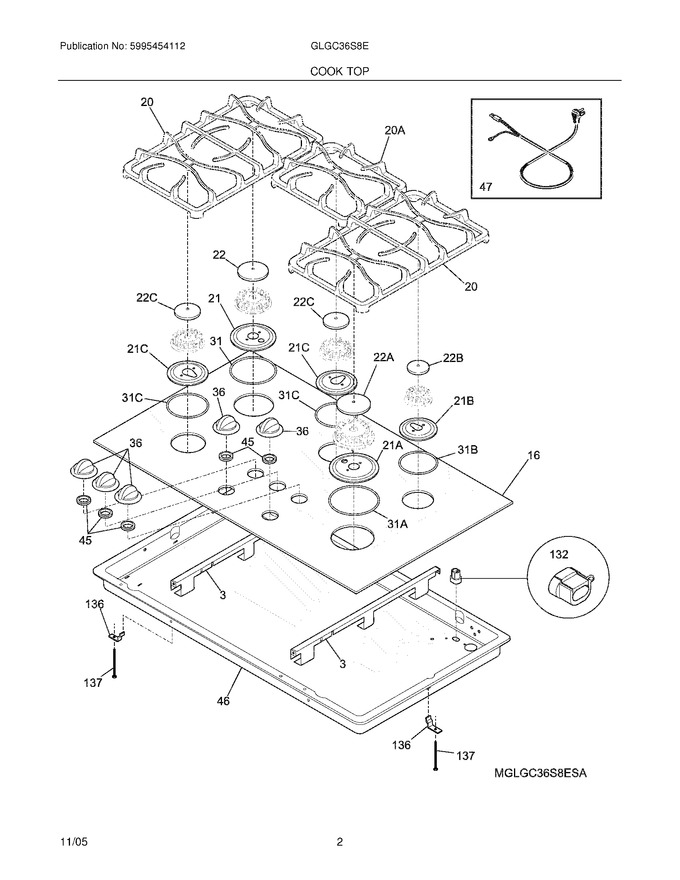

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171401		Support		Appelez-nous	-
16	318018937		Glass,main Top ,black		Appelez-nous	-
20	318321300		Grate,double ,black ,(2)				$ 273.47
21	316241701		Skirt,11k Burner ,black				$ 80.00
22	316242800		Cap,11k Burner ,black				$ 132.41
31	316242001		Seal,12k Burner				$ 23.06
36	318196163		Knob,control ,black				$ 48.56
45	318146211		Bushing,black				$ 16.22
46	318077005		Box,burner		Appelez-nous	-
47	318144006		Cord,service		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318321400		Grate,black ,center		Appelez-nous	-
21A	316264901		Skirt,14k Burner ,black				$ 85.39
21B	316241901		Skirt,5k Burner ,black				$ 82.32
21C	316241801		Skirt,9.5k Burner ,black				$ 79.01
22A	316219800		Cap,14k Burner ,black				$ 163.17
22B	316206500		Cap,5k Burner ,black				$ 92.66
22C	316242900		Cap,9.5k Burner ,black				$ 51.61
31A	316242000		Seal,14k Burner				$ 73.71
31B	316242003		Seal,5k Burner				$ 15.17
31C	316242002		Seal,9.5k Burner				$ 25.02
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
