SELECT A DIAGRAM

01 - Cover


03 - Maintop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171400		Support		Appelez-nous	-
6	318180500		Bracket,element		Appelez-nous	-
16	318218611		Main Top,glass ,black ,w/ Nameplate		Appelez-nous	-
19	318168114		Pan,burner ,black ,medium				$ 151.68
20	318120103		Grate,black ,(4)		Appelez-nous	-
22	316213500		Cap,burner ,black ,medium Lf & Lr   (Replaces: 318076410)				$ 43.23
33	318172803		Bracket,switch		Appelez-nous	-
43	318215501		Knob,control ,black		Appelez-nous	-
45	318146220		Bushing		Appelez-nous	-
46	318077001		Burner Box		Appelez-nous	-
50	318218501		Nameplate,black ,gallery		Appelez-nous	-
51	318044821		Light,indicator ,natural		Appelez-nous	-
52	5303317177		Spring-element Mtg				$ 12.74
53	318172802		Bracket,indicator Light		Appelez-nous	-
55	5303317178		Spacer-element				$ 2.42
56	5303317179		Screw-element, 6 X 3/4				$ 2.42
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
130	318160303		Shield,insulation		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
19A	318168124		Pan,burner ,black ,large				$ 140.67
19B	318168104		Pan,burner ,black ,small				$ 155.93
22A	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22B	318076400		Cap,burner ,black ,small Rr				$ 25.66
31A	318053901		Gasket,burner Pan				$ 33.60
43A	318017106		Knob,control ,black				$ 62.74
F15C	316098202		Element,warmer Zone ,100w				$ 473.08
F47	5303303991		Cord-electric Power				$ 96.50
F54B	318078800		Switch,warmer ,drawer/zone				$ 163.01
NI	318052124		Wiring Harness		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

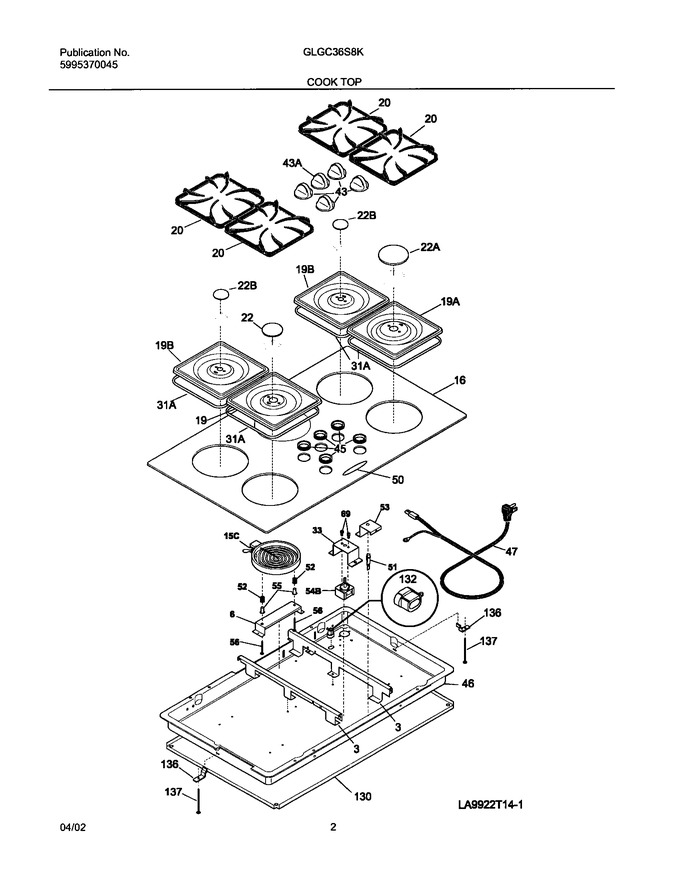

    View Diagram in Separate Window       Print Part List
