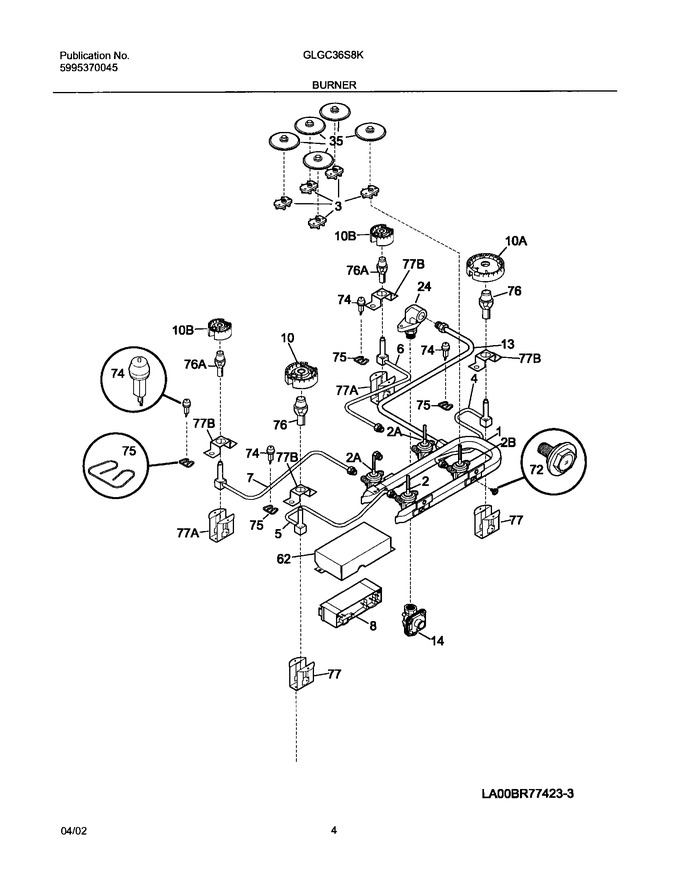

05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	318054505		Connection,manifold Tube		Appelez-nous	-
24	318054000		Elbow Fitting		Appelez-nous	-
35	318146300		Bushing		Appelez-nous	-
62	318160201		Cover,spark Module		Appelez-nous	-
72	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
75	318148800		Clip,electrode				$ 68.57
77	318112010		Bracket,burner Mtg ,medium & Large		Appelez-nous	-
77A	318112000		Bracket,burner Mtg ,small				$ 51.14
77B	318180900		Bracket,burner Tube				$ 8.56
F1	318177204		Manifold Pipe		Appelez-nous	-
F10	318148001		Burner,top ,9100 Btu ,medium Lf & Lr				$ 112.88
F10A	318148002		Burner,top ,13000 Btu ,large Rf				$ 144.64
F10B	318148000		Burner,top ,5000 Btu ,small Rr				$ 252.58
F14	5308007974		Regulator-pressure				$ 309.02
F2	318087304		Valve,burner ,1200 Btu		Appelez-nous	-
F2A	318087305		Valve,burner ,1800 Btu		Appelez-nous	-
F2B	318087303		Valve,burner ,675 Btu		Appelez-nous	-
F3	318163400		Switch,ignitor			Immediately	$ 82.22
F4	318167704		Tube,burner ,fl				$ 70.04
F5	318167705		Tube,burner				$ 180.71
F6	318167706		Tube,burner				$ 223.26
F7	318167707		Tube,burner ,bl		Appelez-nous	-
F74	318148700		Ignitor,top Burner				$ 62.19
F76	318167801		Tube,mixing ,medium & Large				$ 98.60
F76A	318167800		Tube,mixing ,small				$ 78.33
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	318127410		Lp Conversion Kit		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
