01 - Cover

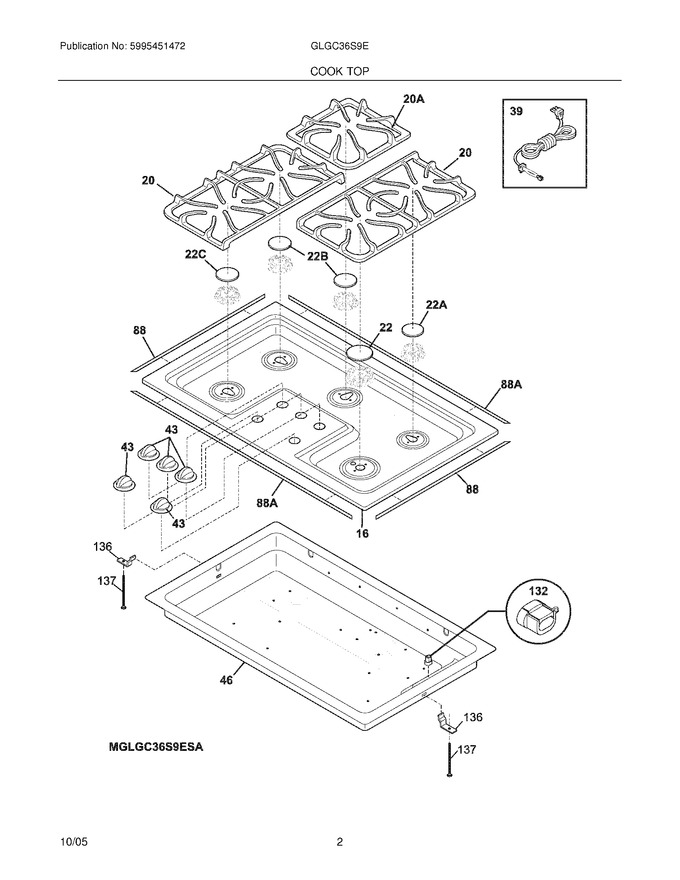

03 - Maintop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318296435		Maintop,black		Appelez-nous	-
20	318221666		Grate,black ,(2)				$ 443.94
22	316219900		Cap,14k Burner ,black				$ 112.98
39	318144006		Cord,service		Appelez-nous	-
43	318196163		Knob,control ,black				$ 48.56
46	318279000		Box,burner		Appelez-nous	-
88	318280102		Gasket,cooktop ,21.48`` ,sides ,(2)   (Replaces: 318280101)				$ 59.12
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)   (Replaces: 318264300)				$ 42.95
137	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318221741		Grate,black ,center				$ 238.56
22A	316206600		Cap,5k Burner ,black				$ 96.39
22B	316213500		Cap,9.5k Burner ,black				$ 43.23
22C	316213600		Cap,12k Burner ,black				$ 130.08
88A	318280102		Gasket,cooktop ,35.78`` ,front/back ,(2)				$ 59.12
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
