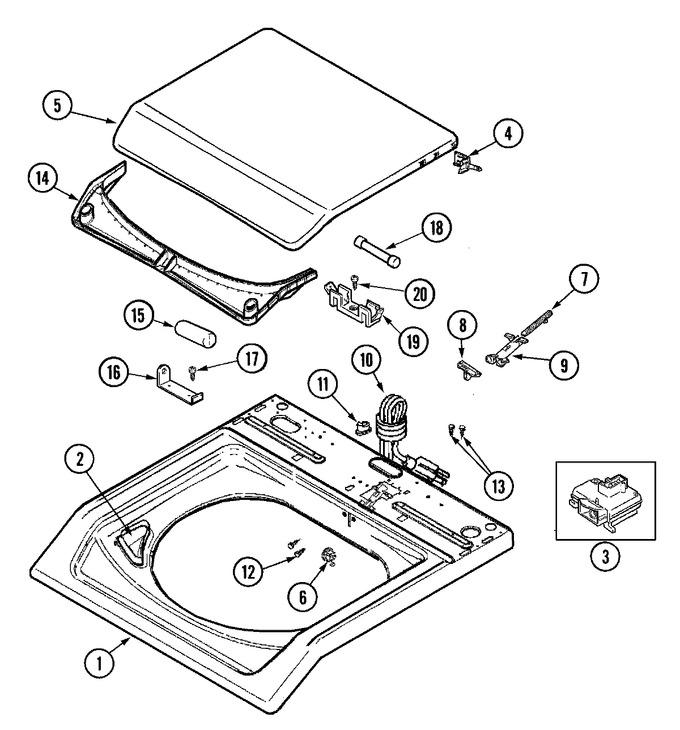

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003468		Cover, Top (wht-aspkd)	10	Appelez-nous	-
2	22002835		Cup, Bleach (wht)	10			$ 5.83
3	22003804		Lid Switch	10			$ 45.48
4	WP22002751		Hinge Pin (wht)   (Replaces: 22002751)	10		Immediately	$ 7.05
5	22003411		Lid, Washer (wht-w/med-aspkd)	10	Appelez-nous	-
6	22002753		Bushing, Hinge	10			$ 5.84
7	WP22002754		Plunger   (Replaces: 22002754)	10		Immediately	$ 7.04
8	W10814230		Cam, Lid (wht)   (Replaces: 22002755)	10		Immediately	$ 7.25
9	WP22002757		Guide Tube   (Replaces: 22002757)	10		Immediately	$ 7.18
10	22003542		Adapter (gen Export) 10 Amp	10	Appelez-nous	-
10	22003540		Cord, Power (export)	10	Appelez-nous	-
10	22003541		Adapter (australia) 10 Amp	10	Appelez-nous	-
10	22003543		Adapter (britian) 10 Amp	10	Appelez-nous	-
11	216183		Grommet, Cord Export	10	Appelez-nous	-
12	2016090		Screw, Lid Switch To Bracket	10	Appelez-nous	-
13	00489128		Screw   (Replaces: Y705026)	10			$ 773.97
14	22002967		Condensate Seal (wht)	10			$ 59.36
15	22001857		Capacitor (220v 50c)	10	Appelez-nous	-
16	22001396		Clip, Capacitor	10	Appelez-nous	-
17	WP90767		Screw   (Replaces: 211294)	10		Immediately	$ 7.04
18	22001920		Fuse (10a)	10	Appelez-nous	-
19	22001921		Holder, Fuse	10	Appelez-nous	-
20	WP693995		Screw   (Replaces: 22003538)	10		Immediately	$ 6.47

    View Diagram in Separate Window       Print Part List
