01 - Base
02 - Cabinet
03 - Control Panel & Top
04 - Supplemental Information
05 - Transmission
06 - Tub
07 - Wiring Information
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

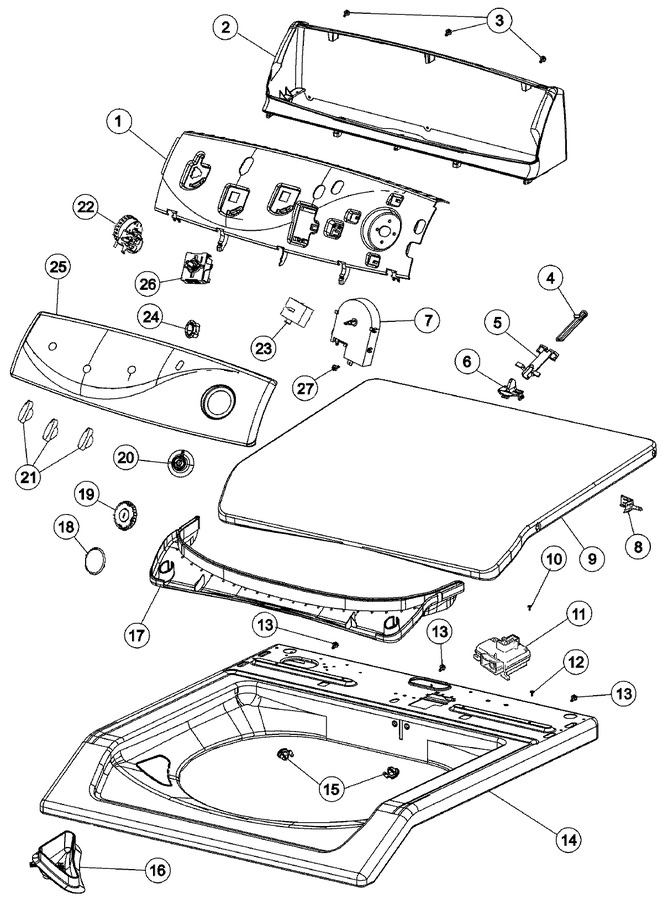

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003955 | Switch Support | 10 |
|
- | ||||
| 2 | 22003975 | Console Housing (bsq) | 10 |
|
- | ||||
| 3 | 22003938 | Screw, Oval Ctsk Hd No.8 | 10 |
|
- | ||||
| 4 | WP22002754 | Plunger (Replaces: 22002754) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | WP22002757 | Guide Tube (Replaces: 22002757) | 10 |
|
Immediately | $ 7.18 | |||
| 6 | 22004064 | Lid As Pack Phase Iii (bsq) | 10 |
|
- | ||||
| 6 | W10814230 | Lid Cam (white) (Replaces: 22003941) | 10 |
|
Immediately | $ 7.25 | |||
| 7 | 22004070 | Timer | 10 |
|
$ 189.38 | ||||
| 8 | WP22002751 | Hinge Pin (wht) (Replaces: 22002751) | 10 |
|
Immediately | $ 7.05 | |||
| 9 | 22004063 | Lid As Pack Phase Iii (wht) | 10 |
|
- | ||||
| 10 | 2016090 | Screw, Lid Switch To Bracket | 10 |
|
- | ||||
| 11 | 22003804 | Lid Switch | 10 |
|
$ 45.48 | ||||
| 12 | WP489128 | Screw, Serrated Washer Head Hx (Replaces: 22003817) | 10 |
|
$ 9.79 | ||||
| 13 | 22003938 | Screw, Oval Ctsk Hd No.8 | 10 |
|
- | ||||
| 14 | 22003469 | Cover, Top (bsq-aspkd) | 10 |
|
- | ||||
| 14 | 22003468 | Cover, Top (wht-aspkd) | 10 |
|
- | ||||
| 15 | 22002753 | Bushing, Hinge | 10 |
|
$ 5.84 | ||||
| 16 | 22004382 | Bleach Cup (bsq) | 24 |
|
- | ||||
| 16 | 22002802 | Cup, Bleach (bsq) | 10 |
|
- | ||||
| 16 | 22004381 | Bleach Cup (wht) | 24 |
|
$ 30.70 | ||||
| 16 | 22002835 | Cup, Bleach (wht) | 10 |
|
$ 5.83 | ||||
| 17 | 22002967 | Condensate Seal (wht) | 10 |
|
$ 59.36 | ||||
| 18 | WP22003989 | Timer Cap (ss) (Replaces: 22003990) | 10 |
|
Immediately | $ 41.84 | |||
| 19 | 22003952 | Knob, Timer (cmpg) | 10 |
|
$ 19.47 | ||||
| 20 | 22004166 | Timer Dial Skirt (bsq) | 10 |
|
- | ||||
| 21 | WP22003987 | Control Knob (ss) (Replaces: 22003988) | 10 |
|
$ 52.45 | ||||
| 22 | 22004069 | 5 Position Pressure Switch | 10 |
|
$ 79.59 | ||||
| 23 | 22003994 | 6 Pos. Rotary Speed Switch | 10 |
|
$ 15.37 | ||||
| 24 | 22003978 | Switch, Rocker (bsq) | 10 |
|
- | ||||
| 25 | 22004340 | Facia/control Panel (bsq) | 10 |
|
- | ||||
| 26 | 22004337 | Temp Switch, 4 Pos. Rotary | 10 |
|
$ 11.19 | ||||
| 27 | WP33002917 | Screw, No.10-16 (Replaces: 33002917) | 10 |
|
Immediately | $ 6.90 |
