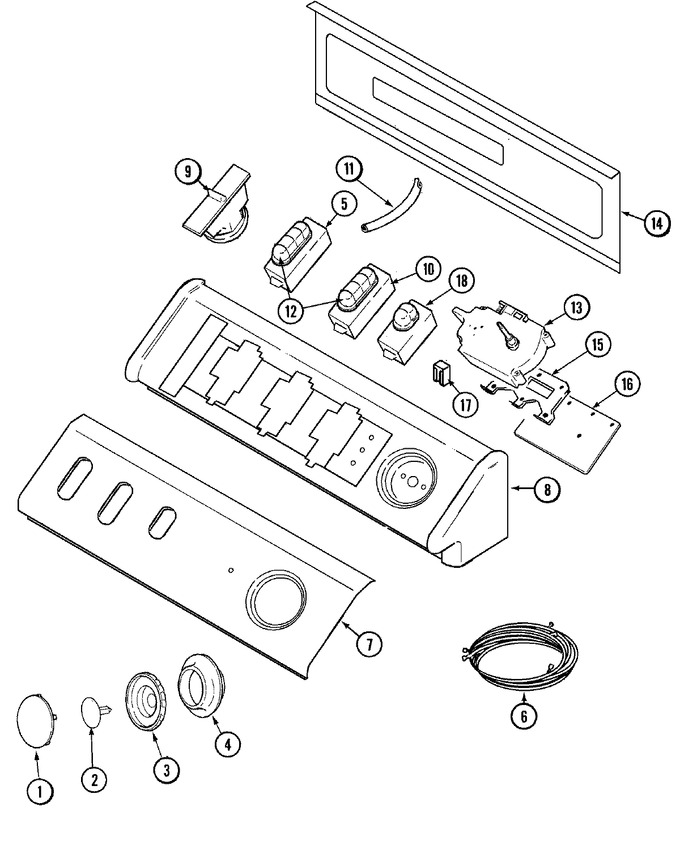

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
2	22002997		Pin, Locking	10	Appelez-nous	-
3	22002996		Knob, Timer (gry)	10	Appelez-nous	-
4	22002995		Skirt, Timer Knob (wht)	10	Appelez-nous	-
5	22002999		Switch (4 Button Temp) (wht)	10			$ 188.97
6	22003379		Harness, Main	10	Appelez-nous	-
7	22003405		Panel, Control (wht)	10	Appelez-nous	-
7	22003505		Panel, Control (wht)	19	Appelez-nous	-
8	33002286		Console (wht)	10	Appelez-nous	-
8	WP489128		Screw   (Replaces: 22002925)	10			$ 9.79
9	22003461		Pad, Pressure Switch	10	Appelez-nous	-
9	22002705		Switch, Pressure	10			$ 79.45
10	22002711		Switch, 4 Button Option / Wht	10	Appelez-nous	-
11	22003237		Air Dome Hose	18	Appelez-nous	-
11	22003422		Hose, Air Dome	10	Appelez-nous	-
12	22001788		Button, Switch (wht-end)	10	Appelez-nous	-
12	22001789		Button, Switch (wht-mdl)	10	Appelez-nous	-
13	22003370		Timer	10	Appelez-nous	-
13	22003499		Timer Rpr	19			$ 192.53
14	Y22002339		Screw	10	Appelez-nous	-
14	22002529		Console Back Panel	10	Appelez-nous	-
15	22003003		Bracket, Atc / Timer	10	Appelez-nous	-
16	22002857		Board, Control	10	Appelez-nous	-
16	22003575		Board, Control	21	Appelez-nous	-
17	903115		Lock Light	10			$ 5.70
17	WP22001948		Lens, Indicator Light   (Replaces: 22001948)	10			$ 11.42
18	22003391		Switch, 2 Button (wht)	10	Appelez-nous	-
19	16009485		Manual, Service-no Refund	10	Appelez-nous	-
19	22003473		Manual, Use & Care (tri)	10	Appelez-nous	-
