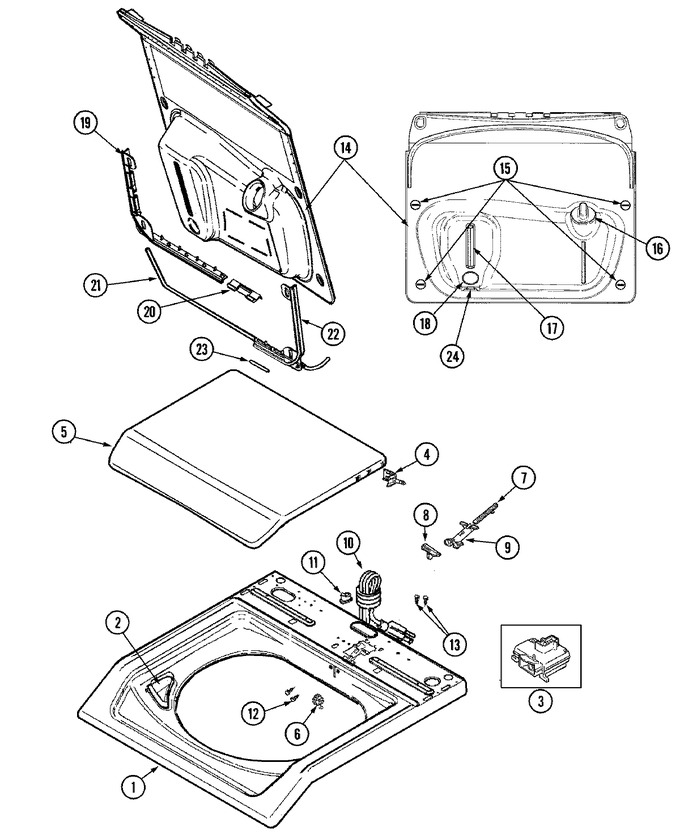

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003468 | Cover, Top (wht-aspkd) | 10 |
|
- | ||||
| 2 | 22002835 | Cup, Bleach (wht) | 10 |
|
$ 5.83 | ||||
| 3 | 22003439 | Switch, Lid (240v) | 10 |
|
- | ||||
| 4 | WP22002751 | Hinge Pin (wht) (Replaces: 22002751) | 10 |
|
Immediately | $ 7.05 | |||
| 5 | 22003411 | Lid, Washer (wht-w/med-aspkd) | 10 |
|
- | ||||
| 6 | 22002753 | Bushing, Hinge | 10 |
|
$ 5.84 | ||||
| 7 | WP22002754 | Plunger (Replaces: 22002754) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | W10814230 | Cam, Lid (wht) (Replaces: 22002755) | 10 |
|
Immediately | $ 7.25 | |||
| 9 | WP22002757 | Guide Tube (Replaces: 22002757) | 10 |
|
Immediately | $ 7.18 | |||
| 10 | 22003540 | Cord, Power (export) | 10 |
|
- | ||||
| 10 | 22003543 | Adapter (britian) 10 Amp | 10 |
|
- | ||||
| 10 | 22003542 | Adapter (gen Export) 10 Amp | 10 |
|
- | ||||
| 10 | 22003541 | Adapter (australia) 10 Amp | 10 |
|
- | ||||
| 11 | 216183 | Grommet, Cord Export | 10 |
|
- | ||||
| 12 | 2016090 | Screw, Lid Switch To Bracket | 10 |
|
- | ||||
| 13 | 00489128 | Screw (Replaces: Y705026) | 10 |
|
$ 773.97 | ||||
| 14 | 22002773 | Dosing Lid Assy. | 10 |
|
- | ||||
| 15 | 22002774 | Lock, Twist | 10 |
|
- | ||||
| 16 | 22002775 | Cap | 10 |
|
- | ||||
| 17 | 22002776 | Slider, Sight Glass | 10 |
|
- | ||||
| 18 | 22002777 | Plunger Valve Assembly | 10 |
|
- | ||||
| 19 | 22002771 | Retainer, Torsion Rod (lt) | 10 |
|
- | ||||
| 20 | 22002772 | Support, Ctr. (torsion Rod) | 10 |
|
- | ||||
| 21 | 22002842 | Torsion Rod | 10 |
|
- | ||||
| 22 | 22002843 | Retainer, Torsion Rod (rt) | 10 |
|
- | ||||
| 23 | 22002844 | Bearing, Torsion Rod | 10 |
|
- | ||||
| 24 | 22002779 | Retainer, Plunger Valve (clip) | 10 |
|
- | ||||
| 25 | 22001857 | Capacitor (220v 50c) | 10 |
|
- | ||||
| 26 | 22001396 | Clip, Capacitor | 10 |
|
- | ||||
| 27 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 28 | 22001920 | Fuse (10a) | 10 |
|
- | ||||
| 29 | 22001921 | Holder, Fuse | 10 |
|
- | ||||
| 30 | WP693995 | Screw (Replaces: 22003538) | 10 |
|
Immediately | $ 6.47 |
