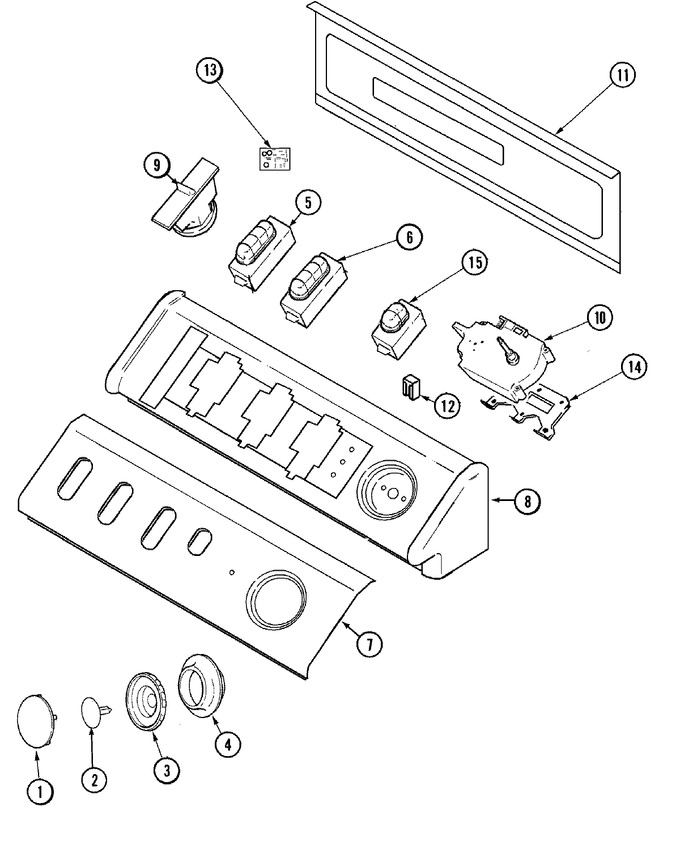

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Base
02 - Cabinet
03 - Control Panel
04 - Supplemental Information
05 - Top
06 - Transmission
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 2 | 22002997 | Pin, Locking | 10 |
|
- | ||||
| 3 | 22002996 | Knob, Timer (gry) | 10 |
|
- | ||||
| 4 | 22002995 | Skirt, Timer Knob (wht) | 10 |
|
- | ||||
| 5 | 22003525 | Switch, Temp. (4 Pos.-wht) | 10 |
|
- | ||||
| 6 | 22003588 | Switch, 4 Button (opt.exp.) | 10 |
|
- | ||||
| 7 | 33002256 | Seal, Cabinet (export) | 10 |
|
- | ||||
| 7 | 22004094 | Facia, Export Mav7750 | 17 |
|
- | ||||
| 7 | 22003803 | Control Panel | 10 |
|
- | ||||
| 8 | 22002964 | Console (wht) | 10 |
|
- | ||||
| 8 | 33002256 | Seal, Cabinet (export) | 10 |
|
- | ||||
| 9 | 22002705 | Switch, Pressure | 10 |
|
$ 79.45 | ||||
| 10 | 22003523 | Timer | 10 |
|
- | ||||
| 11 | 33002253 | Back, Console Panel | 10 |
|
- | ||||
| 11 | Y22002339 | Screw | 10 |
|
- | ||||
| 11 | 22002406 | Plug, Hole | 10 |
|
- | ||||
| 12 | 903115 | Lock Light | 10 |
|
$ 5.70 | ||||
| 12 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.42 | ||||
| 13 | 22003907 | Analog Temp Control Board-exp | 10 |
|
- | ||||
| 14 | 22003003 | Bracket, Atc / Timer | 10 |
|
- | ||||
| 15 | 22003589 | Switch, 2 Button (opt.exp.) | 10 |
|
- |
