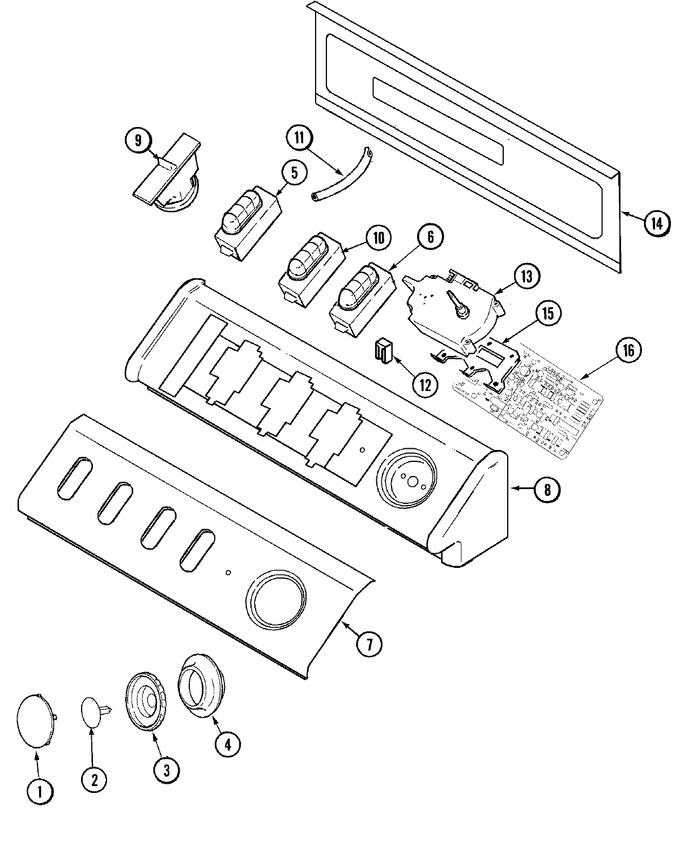

01 - Base
02 - Cabinet
03 - Control Panel
04 - Supplemental Information
05 - Top
06 - Transmission
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33002347 | Timer Knob Insert/cap | 10 |
|
$ 22.30 | ||||
| 2 | 22002997 | Pin, Locking | 10 |
|
- | ||||
| 3 | 22002996 | Knob, Timer (gry) | 10 |
|
- | ||||
| 4 | 22003005 | Skirt, Timer Knob (bsq) | 10 |
|
- | ||||
| 5 | 22003006 | Switch, (4 Button Temp) (bsq) | 10 |
|
- | ||||
| 6 | 22003392 | Switch, 2 Button (bsq) | 10 |
|
- | ||||
| 7 | 22003870 | Control Panel, Facia / Bisque | 10 |
|
- | ||||
| 8 | WP489128 | Screw (Replaces: 22002925) | 10 |
|
$ 9.79 | ||||
| 9 | 22002804 | Switch, Pressure (bsq) | 10 |
|
- | ||||
| 9 | 22003461 | Pad, Pressure Switch | 10 |
|
- | ||||
| 10 | 22003386 | Switch, Four Button - Bsq | 10 |
|
- | ||||
| 11 | 22003237 | Air Dome Hose | 10 |
|
- | ||||
| 12 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.42 | ||||
| 12 | 903115 | Lock Light | 10 |
|
$ 5.70 | ||||
| 13 | 22003499 | Timer Rpr | 10 |
|
$ 192.53 | ||||
| 14 | Y22002339 | Screw | 10 |
|
- | ||||
| 14 | 22002529 | Console Back Panel | 10 |
|
- | ||||
| 15 | 22003003 | Bracket, Atc / Timer | 10 |
|
- | ||||
| 16 | 22003575 | Board, Control | 10 |
|
- |
