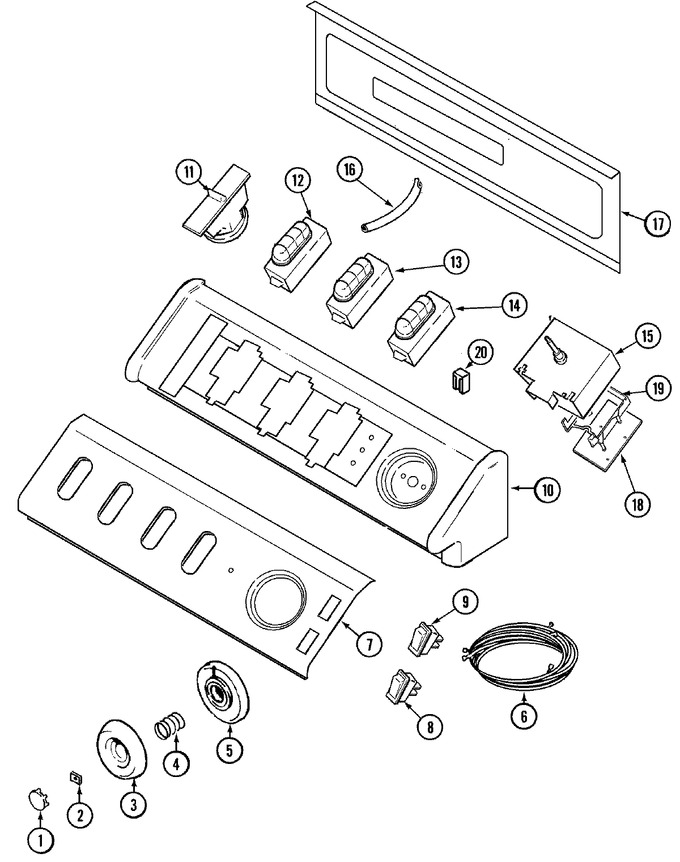

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33002347 | Timer Knob Insert/cap | 10 |
|
$ 22.30 | ||||
| 2 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 3 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
$ 26.38 | ||||
| 4 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 5 | 22002598 | Bezel, Timer Dial (bsq) | 10 |
|
- | ||||
| 6 | 22003220 | Wire Harness | 11 |
|
- | ||||
| 6 | 22002730 | Wire Harness | 10 |
|
- | ||||
| 7 | 22002810 | Panel, Control (bsq) | 10 |
|
- | ||||
| 8 | 22002815 | Switch, Rocker (bsq) | 10 |
|
- | ||||
| 9 | 22002816 | Switch, Rocker (bsq) | 10 |
|
- | ||||
| 10 | 33002327 | Console (bsq) | 10 |
|
- | ||||
| 11 | 22002804 | Switch, Pressure (bsq) | 10 |
|
- | ||||
| 11 | 22003461 | Pad, Pressure Switch | 14 |
|
- | ||||
| 12 | 22002746 | Switch, Temperature (bsq) | 10 |
|
- | ||||
| 12 | 22002697 | Button, Switch (bsq-end) | 10 |
|
- | ||||
| 12 | 22002698 | Button, Switch (bsq-mdl) | 10 |
|
- | ||||
| 13 | 22002814 | Switch, 4 Button Option / Bsq | 10 |
|
- | ||||
| 13 | 22002697 | Button, Switch (bsq-end) | 10 |
|
- | ||||
| 13 | 22002698 | Button, Switch (bsq-mdl) | 10 |
|
- | ||||
| 14 | 22002811 | Switch, (4 Pos. Bsq) | 10 |
|
- | ||||
| 14 | 22002697 | Button, Switch (bsq-end) | 10 |
|
- | ||||
| 14 | 22002698 | Button, Switch (bsq-mdl) | 10 |
|
- | ||||
| 15 | WP3400094 | Screw, Timer (Replaces: 22001661) | 10 |
|
$ 7.14 | ||||
| 15 | 22002718 | Timer | 10 |
|
- | ||||
| 15 | 22003219 | Timer | 11 |
|
- | ||||
| 16 | 22003422 | Hose, Air Dome | 14 |
|
- | ||||
| 16 | 22003237 | Air Dome Hose | 12 |
|
- | ||||
| 16 | 22002743 | Tube, Water Level Switch | 10 |
|
- | ||||
| 17 | 22002529 | Console Back Panel | 10 |
|
- | ||||
| 18 | 22002858 | Board, Control | 10 |
|
- | ||||
| 19 | 22002856 | Bracket, Mtg. (ctl. Board) | 10 |
|
- | ||||
| 20 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.42 | ||||
| 20 | 903115 | Lock Light | 10 |
|
$ 5.70 | ||||
| 21 | 22002813 | Manual, Use & Care (french) | 10 |
|
- | ||||
| 21 | 16009485 | Manual, Service-no Refund | 10 |
|
- | ||||
| 21 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- | ||||
| 21 | 22002812 | Manual, Use & Care | 10 |
|
- |
