01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts

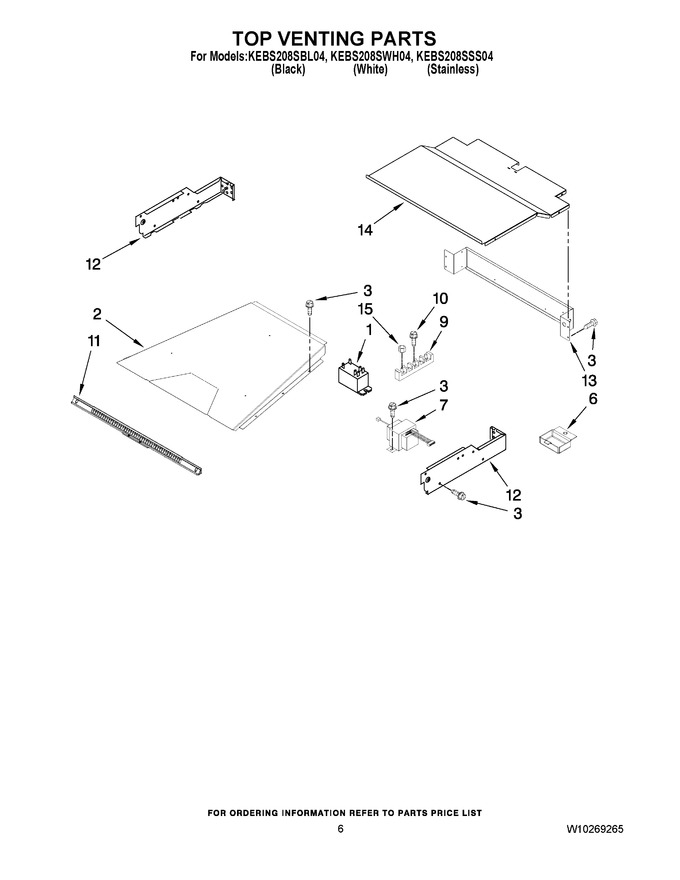

05 - Top Venting Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9752759 | Relay (2) (Replaces: 9752759) |
|
Immediately | $ 172.43 | ||||
| 2 | 8304643 | Duct, Air Outlet |
|
$ 51.64 | |||||
| 3 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 6 | W11819303 | Connector, Cover (Replaces: 8285593) |
|
- | |||||
| 7 | WPW10111628 | Transformer, Control (Replaces: W10111628) |
|
$ 254.91 | |||||
| 9 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) |
|
Immediately | $ 31.65 | ||||
| 10 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 11 | 8303684 | Vent, Control Panel |
|
$ 99.51 | |||||
| 12 | 8304255 | Side, Control Top (left) |
|
$ 36.20 | |||||
| 12 | 8303518 | Side, Control Top (right) |
|
- | |||||
| 13 | 8303520 | Back, Control |
|
$ 33.48 | |||||
| 14 | 8304219 | Cover, Top |
|
$ 52.95 | |||||
| 15 | WP7103P027-60 | Nut (3) (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 |
