SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Control Panel


04 - Top


05 - Transmission


06 - Tub


07 - Wiring Information

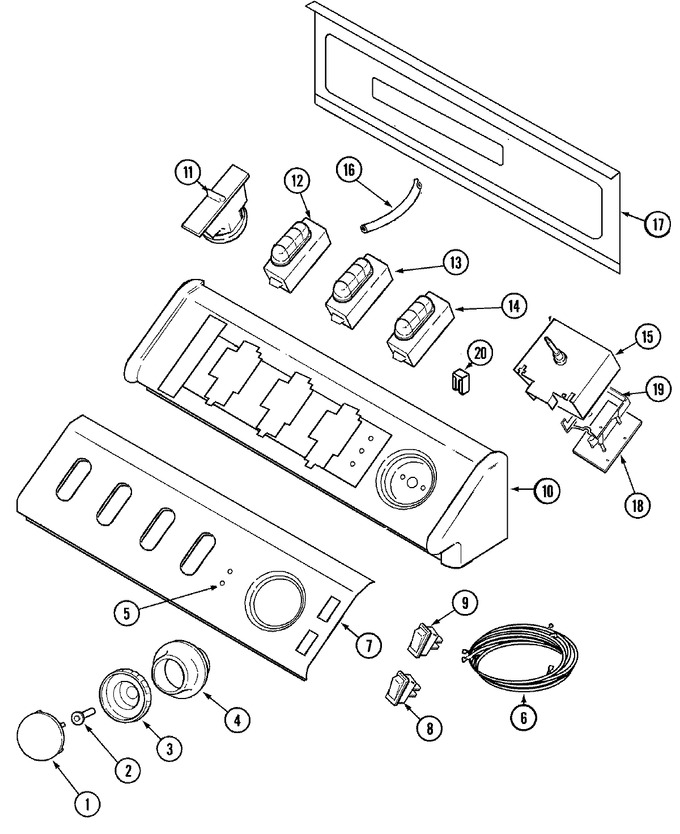

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
2	22002997		Pin, Locking	10	Appelez-nous	-
3	WP22001659		Timer Knob - Grey   (Replaces: 22001659)	10			$ 26.38
4	22002995		Skirt, Timer Knob (wht)	10	Appelez-nous	-
5	WP22001948		Lens, Indicator Light   (Replaces: 22001948)	10			$ 11.42
6	22003002		Wire Harness, Main	10	Appelez-nous	-
7	22003001		Panel, Control (wht)	10	Appelez-nous	-
8	22002719		Switch, Rocker----na	10	Appelez-nous	-
9	22002720		Switch, Rocker	10	Appelez-nous	-
10	33002286		Console (wht)	10	Appelez-nous	-
11	22003461		Pad, Pressure Switch	14	Appelez-nous	-
11	22002705		Switch, Pressure	10			$ 79.45
12	22002999		Switch (4 Button Temp) (wht)	10			$ 188.97
12	22001788		Button, Switch (wht-end)	10	Appelez-nous	-
12	22001789		Button, Switch (wht-mdl)	10	Appelez-nous	-
13	22001789		Button, Switch (wht-mdl)	10	Appelez-nous	-
13	22001788		Button, Switch (wht-end)	10	Appelez-nous	-
13	22003000		Switch (4 Button Option) (wht)	10	Appelez-nous	-
14	22001789		Button, Switch (wht-mdl)	10	Appelez-nous	-
14	22002711		Switch, 4 Button Option / Wht	10	Appelez-nous	-
14	22001788		Button, Switch (wht-end)	10	Appelez-nous	-
15	WP3400094		Screw, Timer   (Replaces: 22001661)	10			$ 7.14
15	22002998		Timer	10	Appelez-nous	-
16	22003237		Air Dome Hose	12	Appelez-nous	-
16	22002743		Tube, Water Level Switch	10	Appelez-nous	-
16	22003422		Hose, Air Dome	14	Appelez-nous	-
17	22002529		Console Back Panel	10	Appelez-nous	-
18	22003009		Board, Control	10	Appelez-nous	-
19	22003003		Bracket, Atc / Timer	10	Appelez-nous	-
20	903115		Lock Light	10			$ 5.70
21	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-
21	16009485		Manual, Service-no Refund	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
