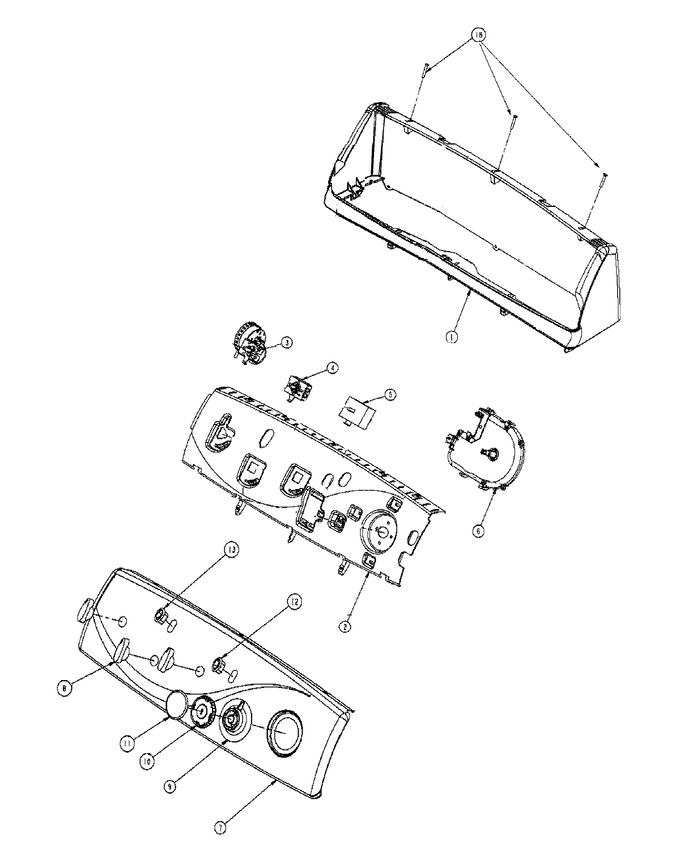

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003960 | Console Housing (wht) | 10 |
|
- | ||||
| 2 | 22003955 | Switch Support | 10 |
|
- | ||||
| 3 | 22004200 | Pressure Switch, Infinite | 10 |
|
$ 11.83 | ||||
| 4 | 22003998 | 4 Position Atc Temp Switch | 10 |
|
$ 14.61 | ||||
| 5 | 22004201 | Switch,speed-7 Position Rotary | 10 |
|
- | ||||
| 6 | WP33002917 | Screw, No.10-16 (Replaces: 33002917) | 10 |
|
Immediately | $ 6.90 | |||
| 6 | WP22004380 | Timer (Replaces: 22004202) | 10 |
|
$ 324.95 | ||||
| 7 | 22004203 | Facia (wht) | 10 |
|
- | ||||
| 8 | WP22003987 | Control Knob (ss) (Replaces: 22003988) | 10 |
|
$ 52.45 | ||||
| 9 | 22004165 | Timer Dial Skirt (wht) | 10 |
|
- | ||||
| 10 | 22003952 | Knob, Timer (cmpg) | 10 |
|
$ 19.47 | ||||
| 11 | WP22003989 | Timer Cap (ss) (Replaces: 22003990) | 10 |
|
Immediately | $ 41.84 | |||
| 12 | WP74010226 | Switch, Rocker (wht) (Replaces: 22003977) | 10 |
|
$ 86.45 | ||||
| 13 | 22003986 | Rocker Switch On/off (wht) | 10 |
|
$ 7.07 | ||||
| 14 | 22003938 | Screw, Oval Ctsk Hd No.8 | 10 |
|
- |
