01 - Base
02 - Cabinet (prior Ser Pre 18)
03 - Cabinet (ser Pre 18 & After)
04 - Control Panel
05 - Top
06 - Transmission
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

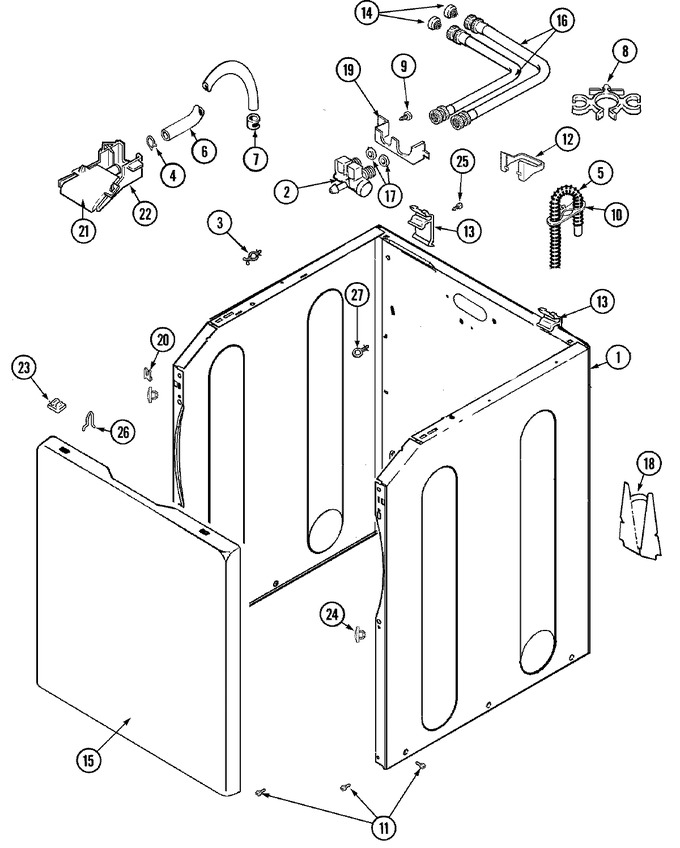

| 1 | 22003553 | Cabinet Assy. (wht-as Pkd) | 18 |
|
- | ||||
| 1 | 22002840 | Brace, Cabinet (lt) | 18 |
|
- | ||||
| 1 | 22003496 | Energy Tag | 18 |
|
- | ||||
| 1 | 22002839 | Brace, Cabinet (rt) | 18 |
|
- | ||||
| 1 | 33002190 | Screw (no.10-3/8``) | 18 |
|
- | ||||
| 2 | 22003372 | Valve, Water W/thermister | 18 |
|
- | ||||
| 3 | 22002852 | Retainer, Wire | 18 |
|
- | ||||
| 4 | WP285655 | Clamp, Spring (Replaces: 22002838) | 18 |
|
Immediately | $ 7.55 | |||
| 5 | WP285655 | Clamp, Hose (Replaces: 22003596) | 18 |
|
Immediately | $ 7.55 | |||
| 5 | WP22003410 | Hose, Drain (Replaces: 22003410) | 18 |
|
Immediately | $ 47.69 | |||
| 6 | 22002761 | Hose, Injector | 18 |
|
- | ||||
| 7 | WP596669 | Clamp,hose-injec.hose To Valve (Replaces: 216169) | 18 |
|
Immediately | $ 7.56 | |||
| 8 | WP22002765 | Clip, Hose (Replaces: 22002765) | 18 |
|
$ 10.58 | ||||
| 9 | 33002190 | Screw (no.10-3/8``) | 18 |
|
- | ||||
| 10 | 22002701 | Retainer, Drain Hose | 18 |
|
- | ||||
| 11 | 213007 | Screw----na (Replaces: 22003409) | 18 |
|
$ 10.99 | ||||
| 12 | 22003429 | Retainer, Fill Hose | 18 |
|
- | ||||
| 13 | 22003367 | Hinge, Plastic | 18 |
|
- | ||||
| 14 | 200961 | Screen Washer, Inlet Hose | 18 |
|
- | ||||
| 15 | 22002737 | Panel, Front (wht) | 18 |
|
- | ||||
| 15 | 33002190 | Screw (no.10-3/8``) | 18 |
|
- | ||||
| 15 | 22002854 | Pad, Sound Barrier | 18 |
|
- | ||||
| 15 | 22002293 | Insulation, Cabinet | 18 |
|
- | ||||
| 16 | 22002764 | Inlet Hose Assy. (cold) | 18 |
|
- | ||||
| 16 | 22002763 | Inlet Hose Assy. (hot) | 18 |
|
- | ||||
| 17 | Y013783 | Gasket, Inlet Hose | 18 |
|
$ 18.72 | ||||
| 18 | 22002704 | Cover, Drain Hose | 18 |
|
- | ||||
| 18 | 33002190 | Screw (no.10-3/8``) | 18 |
|
- | ||||
| 19 | 22003376 | Bracket, Water Valve | 18 |
|
- | ||||
| 20 | 22002748 | Front Panel Bracket | 18 |
|
- | ||||
| 21 | 22003374 | Upper Water Injector, Flume | 18 |
|
- | ||||
| 22 | 22003375 | Lower Water Injector, Flume | 18 |
|
- | ||||
| 23 | 22002013 | Stop, Shipping | 18 |
|
$ 5.43 | ||||
| 24 | 22002965 | Hole Plug | 18 |
|
- | ||||
| 25 | W11573574 | Screw (Replaces: 22001995) | 18 |
|
Immediately | $ 12.62 | |||
| 26 | WP25-7220 | Clip, Cabinet Top (Replaces: 25-7220) | 18 |
|
$ 10.77 | ||||
| 27 | 22003086 | Clip, Air Dome Hose | 18 |
|
- | ||||
| 28 | 22002960 | Strainer, Washer Inlet | 18 |
|
$ 5.70 | ||||
| 28 | 35-2890 | Cable Tie | 18 |
|
- | ||||
| 28 | W10850756 | Screw----na (Replaces: 33001245) | 18 |
|
$ 6.98 | ||||
| 28 | 33002388 | Washer (hdwr Pkg) | 18 |
|
- | ||||
| 28 | Y013783 | Gasket, Inlet Hose | 18 |
|
$ 18.72 |
