Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 22003975 Console Housing (bsq) 12 Appelez-nous -
2 22003955 Switch Support 12 Appelez-nous -
3 22004200 Pressure Switch, Infinite 21 Special Order $ 11.83

3 22003964 Infinite Pressure Switch---sub 12 Appelez-nous -
4 22003998 4 Position Atc Temp Switch 12 Special Order $ 14.61

5 22003994 6 Pos. Rotary Speed Switch 12 Special Order $ 15.37

6 WP33002917 Screw, No.10-16   (Replaces: 33002917) 10 In-Stock Immediately $ 6.90

6 22004309 Timer 21 Special Order $ 189.22

6 22004010 Timer 12 Appelez-nous -
7 22004028 Facia, Control Panel (bsq) 12 Appelez-nous -
8 WP22003987 Control Knob (ss)   (Replaces: 22003988) 12 Special Order $ 52.45

8 WP22003987 Control Knob (chrome) Wht   (Replaces: 22003987) 12 Special Order $ 52.45

9 22003954 Timer Dial Skirt (bsq) 12 Appelez-nous -
10 22003952 Knob, Timer (cmpg) 12 Special Order $ 19.47

11 WP22003989 Timer Cap (ss)   (Replaces: 22003990) 12 In-Stock Immediately $ 41.84

12 22003978 Switch, Rocker (bsq) 12 Appelez-nous -
13 22004003 Rocker Switch (bsq) 12 Appelez-nous -
14 22003938 Screw, Oval Ctsk Hd No.8 12 Appelez-nous -
15 22004050 Eng. Tol. Compensator (spacer) 12 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

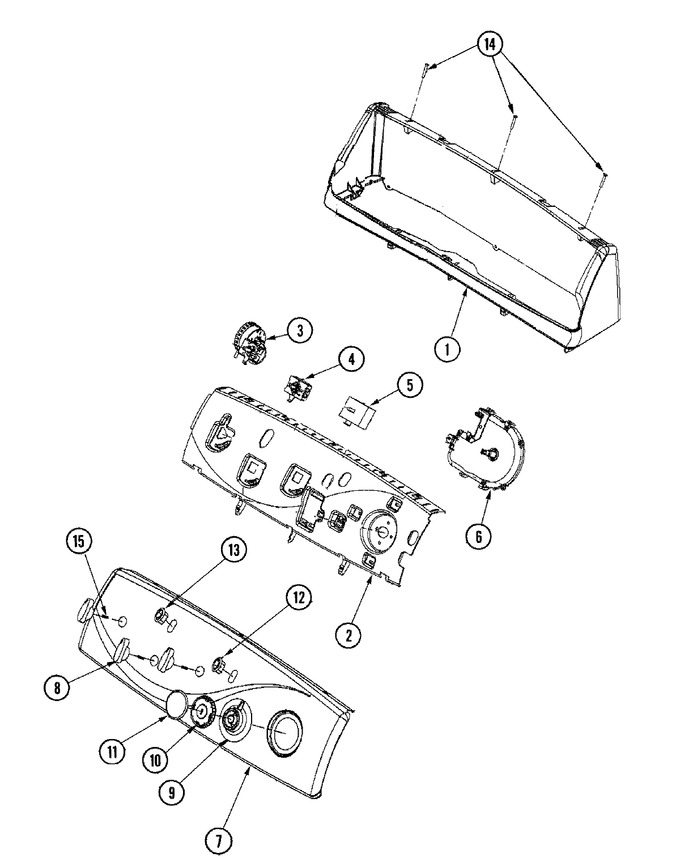

Diagram for MAV8601AWQ
