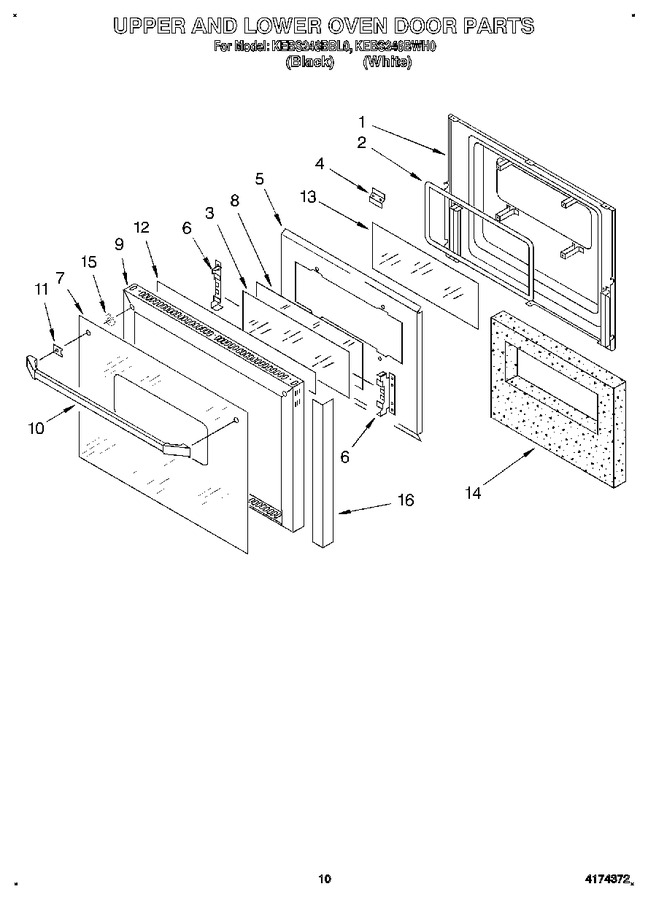

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185499		Liner, Door		Appelez-nous	-
2	3185462		Seal, Window		Appelez-nous	-
3	3185459		Glass, Clear		Appelez-nous	-
4	3185438		Latch, Strike		Appelez-nous	-
4	3185647		Screw		Appelez-nous	-
5	3185437		Retainer, Insulation		Appelez-nous	-
5	4168863		Screw		Appelez-nous	-
6	3185439		Bracket, Glass Mounting (2)		Appelez-nous	-
6	3185647		Screw		Appelez-nous	-
7	3187864		Glass, Door (black Model)		Appelez-nous	-
7	3187866		Glass, Door (white Model)		Appelez-nous	-
8	3185458		Glass, Reflective		Appelez-nous	-
9	3187851		Frame, Door (black Model)		Appelez-nous	-
9	3187853		Frame, Door (white Model)		Appelez-nous	-
10	3185989		Handle, Door (black Model)		Appelez-nous	-
10	3181637		Handle, Door (screw (2))		Appelez-nous	-
10	3185990		Handle, Door (white Model)		Appelez-nous	-
11	3182138		Spacer (2)		Appelez-nous	-
11	3178001		Screw, Black (4)		Appelez-nous	-
12	4168863		Screw		Appelez-nous	-
12	3188634		Foil-adhesive		Appelez-nous	-
13	3185457		Glass, Clear		Appelez-nous	-
14	3185460		Insulation		Appelez-nous	-
15	342043		Screw, 10-24 X 1/2		Appelez-nous	-
15	3188599		Bushing, Door Handle		Appelez-nous	-
16	3188635		Foil-adhesive		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
