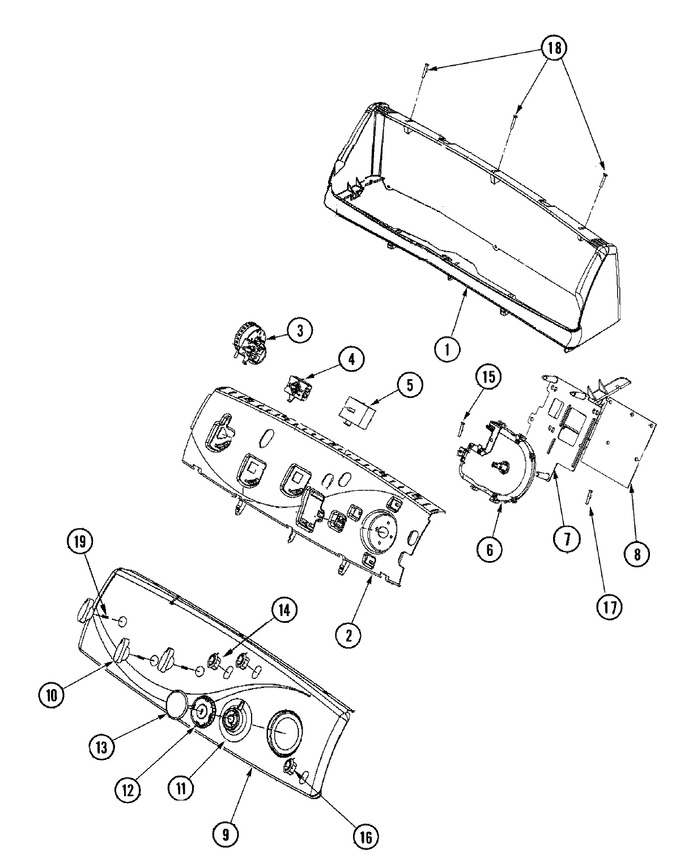

01 - Base
02 - Cabinet
03 - Control Panel
04 - Supplemental Information
05 - Top
06 - Transmission
07 - Tub
08 - Wiring Information
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003960 | Console Housing (wht) | 10 |
|
- | ||||
| 2 | 22003955 | Switch Support | 10 |
|
- | ||||
| 3 | 22004072 | Infinite Pressure Switch | 10 |
|
$ 77.44 | ||||
| 4 | 22003961 | 4 Position Rotary Temp Switch5 | 10 |
|
$ 19.54 | ||||
| 4 | 22004266 | Switch, 4 Temp Rotary | 21 |
|
- | ||||
| 5 | 22004201 | Switch,speed-7 Position Rotary | 10 |
|
- | ||||
| 6 | 22004073 | Timer | 10 |
|
$ 189.34 | ||||
| 6 | WP33002917 | Screw, No.10-16 (Replaces: 33002917) | 10 |
|
Immediately | $ 6.90 | |||
| 7 | 22003983 | Act Timer Bracket | 10 |
|
- | ||||
| 8 | 22004106 | Temp Control Board | 10 |
|
$ 230.96 | ||||
| 8 | 22004265 | Injector | 21 |
|
- | ||||
| 9 | 22004210 | Facia (wht) | 10 |
|
- | ||||
| 10 | WP22003987 | Control Knob (ss) (Replaces: 22003988) | 10 |
|
$ 52.45 | ||||
| 11 | 22004165 | Timer Dial Skirt (wht) | 10 |
|
- | ||||
| 12 | WP22003993 | Timer Knob (blue) (wht) (Replaces: 22003993) | 10 |
|
$ 24.15 | ||||
| 13 | WP22003989 | Timer Cap (chrome) Wht (Replaces: 22003989) | 10 |
|
Immediately | $ 41.84 | |||
| 14 | WP74010226 | Switch, Rocker (wht) (Replaces: 22003977) | 10 |
|
$ 86.45 | ||||
| 15 | WP33002917 | Screw (hex Head) (Replaces: 33001855) | 10 |
|
Immediately | $ 6.90 | |||
| 16 | 22003981 | Switch, Momentary Rocker (wht) | 10 |
|
$ 14.20 | ||||
| 17 | 911266 | Screw, Strainer To Pump | 10 |
|
- | ||||
| 18 | 22003938 | Screw, Oval Ctsk Hd No.8 | 10 |
|
- |
