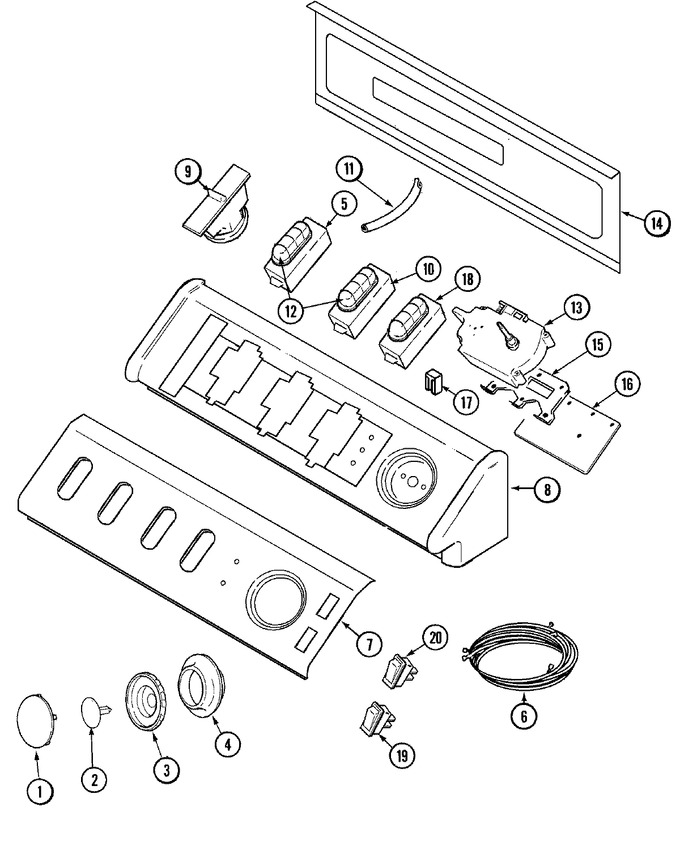

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33002347		Timer Knob Insert/cap	18			$ 22.30
2	22002997		Pin, Locking	18	Appelez-nous	-
3	22002996		Knob, Timer (gry)	18	Appelez-nous	-
4	22003005		Skirt, Timer Knob (bsq)	18	Appelez-nous	-
5	22003006		Switch, (4 Button Temp) (bsq)	18	Appelez-nous	-
6	22003491		Harness, Wire	18	Appelez-nous	-
7	22003447		Panel, Control (bsq)	18	Appelez-nous	-
7	Y22002339		Screw	18	Appelez-nous	-
8	33002327		Console (bsq)	18	Appelez-nous	-
9	22003461		Pad, Pressure Switch	18	Appelez-nous	-
9	22003497		Switch, Pressure (bsq)	18	Appelez-nous	-
10	22003495		Switch, Wash Opt (4 Pos.bsq)	18	Appelez-nous	-
11	22003237		Air Dome Hose	18	Appelez-nous	-
12	22002698		Button, Switch (bsq-mdl)	18	Appelez-nous	-
12	22001789		Button, Switch (wht-mdl)	18	Appelez-nous	-
13	22003445		Timer	18	Appelez-nous	-
14	22002529		Console Back Panel	18	Appelez-nous	-
14	Y22002339		Screw	18	Appelez-nous	-
15	22003003		Bracket, Atc / Timer	18	Appelez-nous	-
16	22003486		Board, Control	18	Appelez-nous	-
16	22003618		Control Board, Temp	25	Appelez-nous	-
17	903115		Lock Light	18			$ 5.70
17	WP22001948		Lens, Indicator Light   (Replaces: 22001948)	18			$ 11.42
18	22003493		Switch, Rinse Opt (4 Pos.bsq)	18	Appelez-nous	-
19	22002815		Switch, Rocker (bsq)	18	Appelez-nous	-
20	22002816		Switch, Rocker (bsq)	18	Appelez-nous	-
21	16010358		Manual, Service	18	Appelez-nous	-
21	22003218		Laundering Tips (trilingual)	18	Appelez-nous	-
21	22003347		Manual, Use & Care	18	Appelez-nous	-
22	22003745		Energy Guide	10	Appelez-nous	-
23	THP-1		Pliers, Qb Products Hose   (Replaces: 20001120)	10		Immediately	$ 62.76
24	22002898		Tool, Seal Nut	10			$ 13.13
25	22002922		Tool, Spring Removal	10			$ 27.74
26	35-2968		Spanner Wrench Basket Drive Hu	10	Appelez-nous	-
