SELECT A DIAGRAM

01 - Control Panel, Lit/optional


02 - Upper And Lower Oven Door


03 - Upper Oven

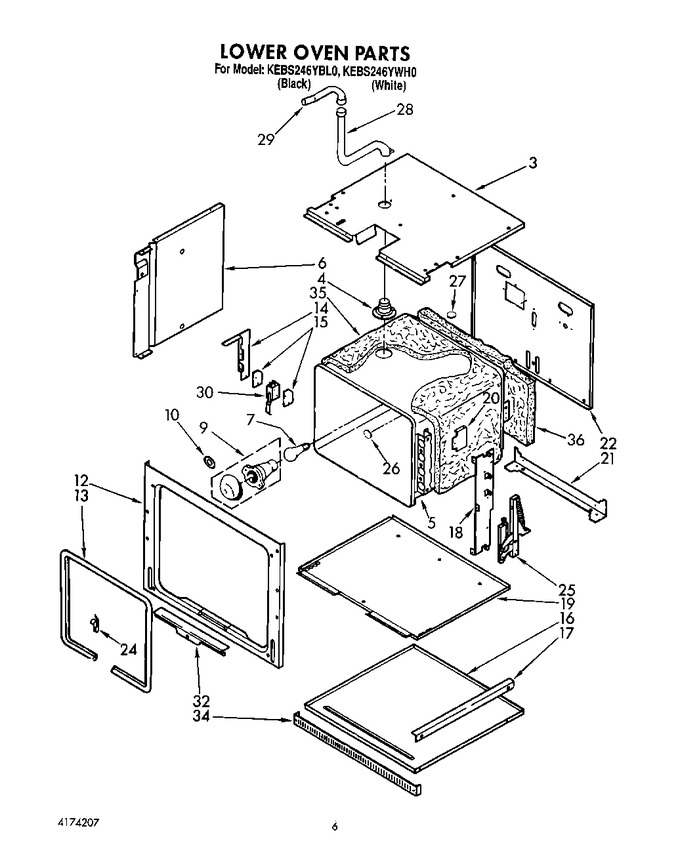

04 - Lower Oven, Optional


05 - Latch And Vent


06 - Unit


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3183747		Module, Top		Appelez-nous	-
3	3148443		Screw		Appelez-nous	-
4	3148443		Screw		Appelez-nous	-
4	3181699		Tube, Vent		Appelez-nous	-
4	3179117		Screw (3)		Appelez-nous	-
5	3177470		Liner, Oven		Appelez-nous	-
6	3177572		Side, Module (r.h. & L.h.)		Appelez-nous	-
6	3148443		Screw		Appelez-nous	-
7	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
9	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
12	3177700		Frame, Door		Appelez-nous	-
13	3179814		Seal, Door		Appelez-nous	-
14	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.47
14	3177681		Bracket, Switch		Appelez-nous	-
15	3177923		Insulator, Switch		Appelez-nous	-
16	3177552		Bottom, Oven		Appelez-nous	-
17	3179220		Rail, Support (2)		Appelez-nous	-
17	3148443		Screw		Appelez-nous	-
18	3148443		Screw		Appelez-nous	-
18	3177433		Bracket, Hinge (2)		Appelez-nous	-
18	3179795		Screw (6)		Appelez-nous	-
19	3177622		Bottom, Module		Appelez-nous	-
20	3148443		Screw		Appelez-nous	-
20	3178612		Shield, Radiation		Appelez-nous	-
21	3177434		Support, Oevn		Appelez-nous	-
21	3148443		Screw		Appelez-nous	-
22	3177559		Back, Module		Appelez-nous	-
22	3148443		Screw		Appelez-nous	-
24	3179848		Clip, Seal (3)		Appelez-nous	-
25	3178000		Screw (4)		Appelez-nous	-
25	3178298		Hinge, Door (2)		Appelez-nous	-
26	3185085		Button, Plug		Appelez-nous	-
27	3185109		Button, Plug		Appelez-nous	-
28	3182159		Tube, Vent		Appelez-nous	-
28	3148443		Screw		Appelez-nous	-
29	3182160		Tube, Vent		Appelez-nous	-
30	4173553		Switch, Door		Appelez-nous	-
30	313489		Screw (2)		Appelez-nous	-
30	4159117		Nut (2)		Appelez-nous	-
32	3179776		Screw (4)		Appelez-nous	-
32	W11233072		Screw   (Replaces: 4159450)			Immediately	$ 12.62
32	3179587		Retainer, Seal		Appelez-nous	-
34	3177788		Trim, Lower Vent		Appelez-nous	-
35	3177865		Insulation, Wrap		Appelez-nous	-
36	242829		12 Ga. 150~c Rating (red)		Appelez-nous	-
36	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
36	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
36	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
36	261891		Harvest Gold		Appelez-nous	-
36	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
36	285368		Platinum		Appelez-nous	-
36	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
36	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
36	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
36	832985		Rack, Cooking (bi-level)		Appelez-nous	-
36	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
36	3177870		Insulation, Back		Appelez-nous	-
36	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
36	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
36	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
36	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
36	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
36	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
36	242826		14 Ga. 150~c Rating (white)		Appelez-nous	-
36	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
36	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
36	242831		Wire (14 Ga. 200 C Red)				$ 342.23
36	242832		14 Ga. 200~c Rating (yellow)		Appelez-nous	-
36	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
36	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
36	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
36	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
36	WP261869		Citrine White   (Replaces: 261869)				$ 23.85
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
36	261890		Harvest Gold		Appelez-nous	-
36	285365		Toast		Appelez-nous	-
36	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
36	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
36	350942		Primer				$ 80.69
36	350941		Leveler (primer)		Appelez-nous	-
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	978883		Almond		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
