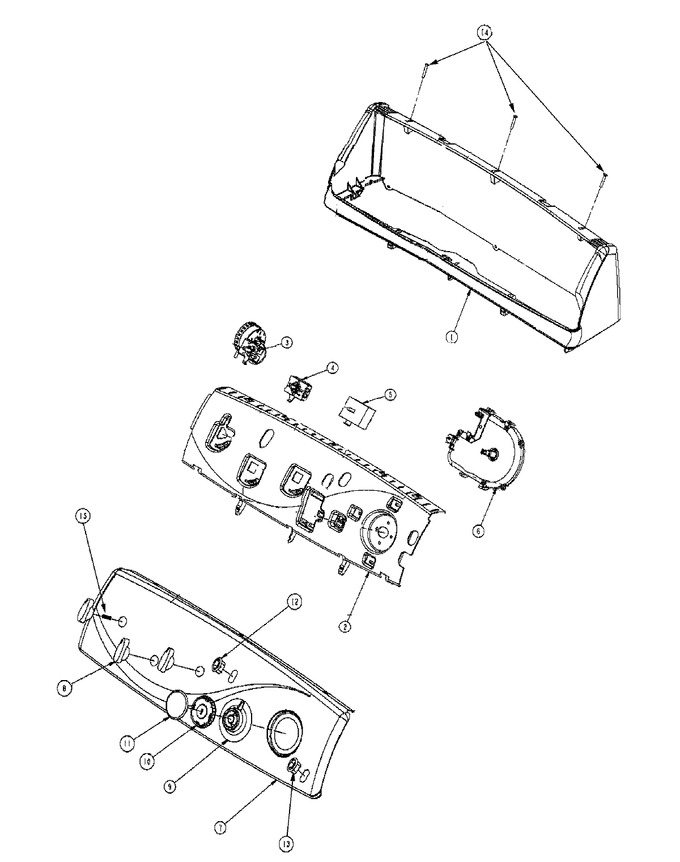

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003960		Console Housing (wht)	12	Appelez-nous	-
2	22003955		Switch Support	12	Appelez-nous	-
3	WP22004188		Switch, 4 Position Pressure   (Replaces: 22004188)	21			$ 144.71
3	WP22004188		4 Position Pressure Switch   (Replaces: 22003962)	12			$ 144.71
4	22003961		4 Position Rotary Temp Switch5	12			$ 19.54
5	22004006		3 Position Rotary Speed Switch	12	Appelez-nous	-
6	WP22004189		Timer   (Replaces: 22004189)	21			$ 198.03
6	WP22004189		Timer   (Replaces: Y22004007)	12			$ 198.03
7	22004017		Facia, Control Panel	12	Appelez-nous	-
8	WP22003987		Control Knob (chrome) Wht   (Replaces: 22003987)	12			$ 52.45
9	22003953		Timer Dial Skirt (wht)	12	Appelez-nous	-
10	WP22003993		Timer Knob (blue) (wht)   (Replaces: 22003993)	12			$ 24.15
11	WP22003989		Timer Cap (chrome) Wht   (Replaces: 22003989)	12		Immediately	$ 41.84
12	WP74010226		Switch, Rocker (wht)   (Replaces: 22003977)	12			$ 86.45
13	22003981		Switch, Momentary Rocker (wht)	12			$ 14.20
14	22003938		Screw, Oval Ctsk Hd No.8	12	Appelez-nous	-
15	22004050		Eng. Tol. Compensator (spacer)	12	Appelez-nous	-
