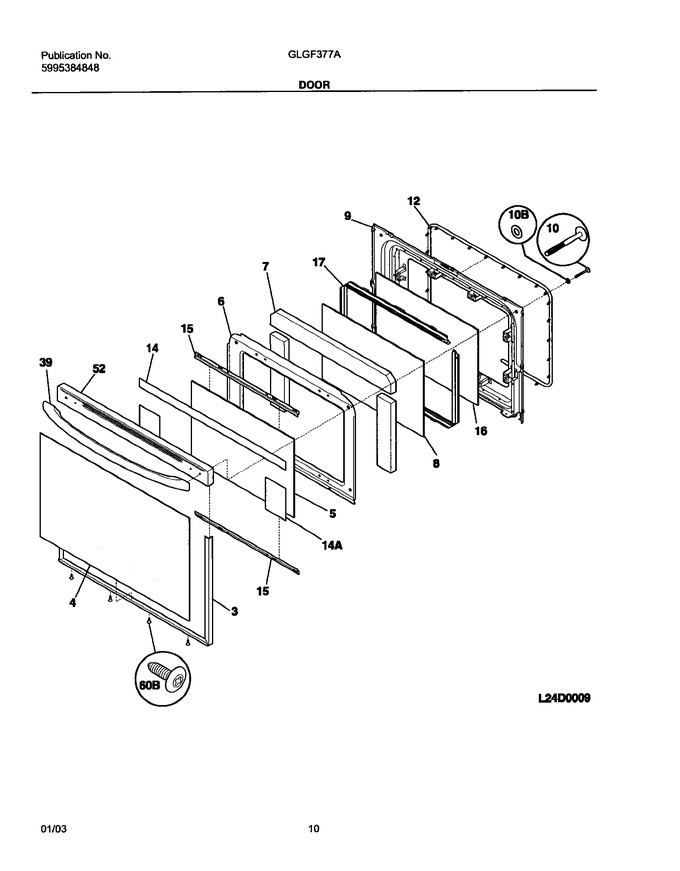

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935192		Trim Kit-door,3 Sided ,white ,w/tape And Foil				$ 77.76
4	5303935201		Glass,door Kit ,white ,outer ,w/ Foil Tape				$ 372.38
5	316237000		Glass,oven Door ,air Wash		Appelez-nous	-
6	316222707		Shield-wool,oven Door				$ 122.01
7	316236700		Insulation,oven Door				$ 54.76
8	5304503232		Glass,oven Door ,clear ,heat Barrier   (Replaces: 316237100)				$ 116.95
9	316230605		Liner,oven Door		Appelez-nous	-
10	316001013		Screw,wafer Head `10-24 X 1.375 ,handle Mtg.			Immediately	$ 2.41
12	316277900		Seal,oven Door   (Replaces: 316230901)				$ 138.92
14	316574603		Foil,1.5`` X 29`` ,aluminum ,clear   (Replaces: 316102207)				$ 21.23
15	316237201		Bracket,glass Support ,(2)		Appelez-nous	-
16	316117501		Glass,oven Door ,inner				$ 148.16
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	316270201		Handle-door,white   (Replaces: 316203001)			Immediately	$ 128.29
52	316491200		Cap,door Trim ,white   (Replaces: 316201003)			Immediately	$ 119.83
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
14A	316102202		Foil,4`` X 5.5`` ,aluminum ,clear ,(2)				$ 8.74
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	316209000		Rivet,pop		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
