01 - Control Panel, Lit/optional


02 - Upper Oven


03 - Lower Oven


04 - Latch And Vent


05 - Unit


06 - Upper And Lower Oven Door


07 - Wiring Harness

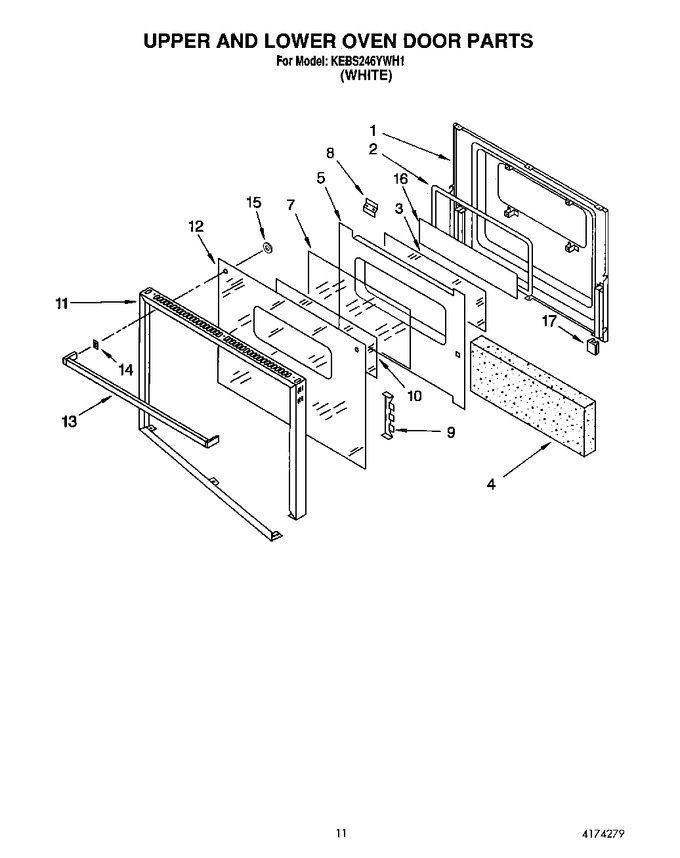

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3178001		Screw		Appelez-nous	-
1	3185499		Liner, Door		Appelez-nous	-
2	3185462		Seal, Window		Appelez-nous	-
3	3185457		Glass, Clear		Appelez-nous	-
4	3185460		Insulation, Door		Appelez-nous	-
5	4173601		Screw		Appelez-nous	-
5	3185437		Retainer, Insulation		Appelez-nous	-
7	3185458		Glass, Reflective		Appelez-nous	-
8	3185438		Latch, Strike		Appelez-nous	-
9	3185439		Retainer, Glass		Appelez-nous	-
9	3148443		Screw		Appelez-nous	-
10	3185459		Glass, Clear		Appelez-nous	-
11	3181403		Frame, Door		Appelez-nous	-
12	3185477		Glass, Door		Appelez-nous	-
13	3182167		Handle, Door		Appelez-nous	-
14	3182138		Spacer, Door Handle		Appelez-nous	-
15	3181637		Screw		Appelez-nous	-
15	3185456		Bushing, Door Handle		Appelez-nous	-
16	3185471		Foil-adhesive Backed		Appelez-nous	-
17	3181701		Bumper, Door Glass		Appelez-nous	-
