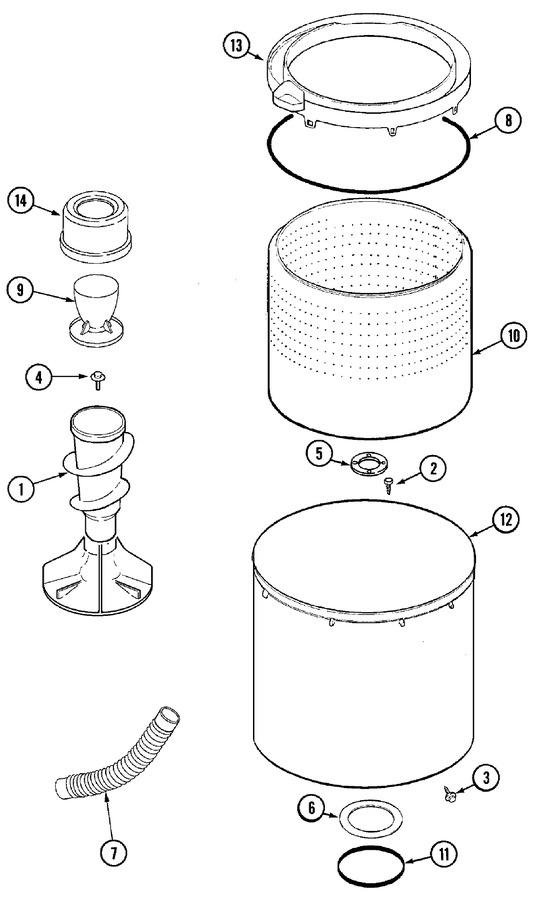

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22004043 | Agitator/auger Assy (as Pk) | 12 |
|
$ 149.04 | ||||
| 2 | WP22002947 | Screw (Replaces: 21001510) | 12 |
|
$ 10.51 | ||||
| 3 | WP22002933 | Screw (Replaces: 22002933) | 12 |
|
$ 6.91 | ||||
| 4 | WPW10309247 | Screw, Agitator Retention (Replaces: 25-7948) | 12 |
|
$ 32.57 | ||||
| 5 | 22003434 | Gasket, Hub/bottom Isolator | 12 |
|
$ 5.56 | ||||
| 6 | 35-3686 | Gasket, Tub To Housing | 12 |
|
$ 5.85 | ||||
| 7 | 22003285 | Hose, Tub To Pump | 12 |
|
$ 23.22 | ||||
| 8 | 35-2328 | Seal, Tub Top | 12 |
|
$ 49.43 | ||||
| 9 | 22003958 | Fabric Softener Bottom | 12 |
|
- | ||||
| 10 | 22004240 | Crimped Spinner Assy As Pk | 18 |
|
- | ||||
| 10 | 22003459 | Spinner, Stainless(aspk-verti) | 12 |
|
$ 258.87 | ||||
| 11 | 22003378 | Ring, Top Insulating | 12 |
|
- | ||||
| 11 | 22003595 | Gasket, Isolator (foam) | 12 |
|
$ 37.09 | ||||
| 12 | 22002742 | Tub, Outer | 12 |
|
$ 217.12 | ||||
| 12 | 22003237 | Air Dome Hose | 12 |
|
- | ||||
| 13 | 12002452 | Tub Cover/bleach Cup Kit | 24 |
|
- | ||||
| 13 | 22002736 | Tub Cover Assy. (tub Top) | 12 |
|
- | ||||
| 13 | 22004241 | Top, Spinner Assy As Pk | 18 |
|
- | ||||
| 14 | 22003957 | Fabric Softener Top | 12 |
|
- | ||||
| 14 | 22003959 | Fabric Softener Ring | 14 |
|
- |
