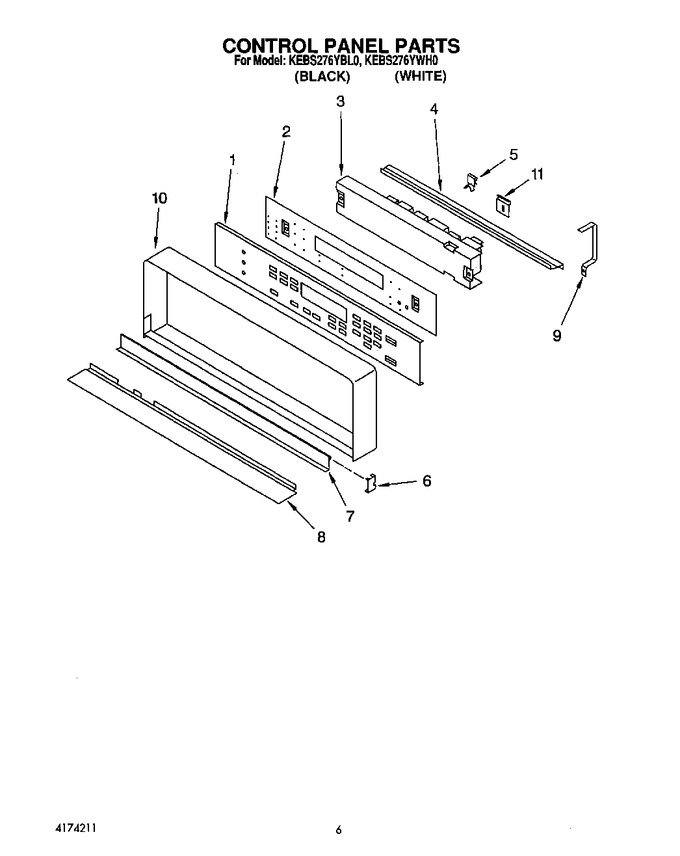

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3181779		Membrane, Switch (black)		Appelez-nous	-
1	3184778		Membrane, Switch (white)		Appelez-nous	-
2	3181889		Bracket, Mounting Switch Membrane		Appelez-nous	-
3	3181706		Microcomputer		Appelez-nous	-
3	3179117		Screw		Appelez-nous	-
4	3182939		Screw		Appelez-nous	-
4	3183705		Retainer, Bracket		Appelez-nous	-
5	3182985		Clip, Retainer		Appelez-nous	-
6	3182162		Trim, Door (2)		Appelez-nous	-
7	3182151		Door, Latch Handle (black)		Appelez-nous	-
7	3179847		Door, Latch Handle (screw)		Appelez-nous	-
7	3182154		Door, Latch Handle (white)		Appelez-nous	-
8	3183702		Trim, Panel		Appelez-nous	-
8	3148443		Screw		Appelez-nous	-
9	3184321		Bracket		Appelez-nous	-
9	3182939		Screw		Appelez-nous	-
10	3182148		Frame, Control Panel		Appelez-nous	-
11	3184567		Clip, Control Frame		Appelez-nous	-
	LIT3182133		Tech Sheet Instructions		Appelez-nous	-
	LIT4174211		Repair Parts List		Appelez-nous	-
	LIT3183659		Installation Instructions		Appelez-nous	-
	LIT3182136		Use & Care Guide		Appelez-nous	-
