Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3185562 Liner, Oven Appelez-nous -
2 661415 Element, Broil Appelez-nous -
3 4396923 Grill, Broiler   (Replaces: 3147563) In-Stock Immediately $ 52.04

4 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

5 3185307 Rack, Offset Appelez-nous -
6 3185308 Rack, Oven Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 131.33

7 3185648 Screw (2) Appelez-nous -
8 4167277 Nut, Meat Probe Appelez-nous -
9 4163975 Gasket, Meat Probe Appelez-nous -
10 4167266 Probe Cover Appelez-nous -
11 4159557 Washer Appelez-nous -
12 3179672 Spacer - Tubing Appelez-nous -
13 3150107 Receptacle, Probe Appelez-nous -
14 3150144 Meat Probe Special Order $ 106.70

15 313570 Clip, Tubing Appelez-nous -
19 3180694 Bracket, Element Appelez-nous -
19 3185648 Screw (4) Appelez-nous -
20 3148440 Sensor, Heat Appelez-nous -
20 3185648 Screw Appelez-nous -
21 3185647 Screw Appelez-nous -
21 3149652 Spst Thermostat Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

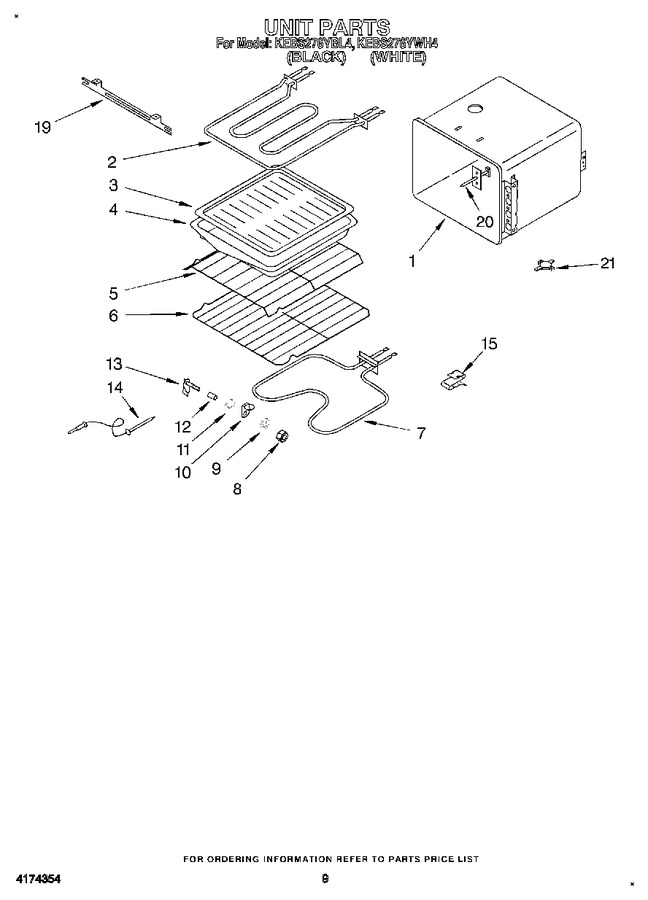

Diagram for KEBS276YWH4
